Battery and mains powered two-channel 48V microphone phantom power supplies, housed in a standard extruded box. Both models have panel-mounted XLR type input and output connectors, and switchable 150Hz filter.

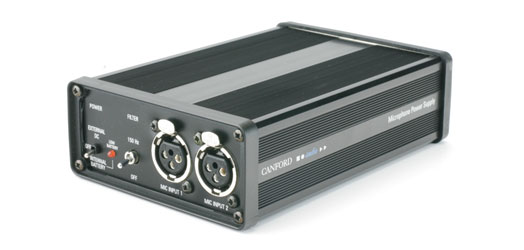

Battery version has front-panel on/off/external power switch and low-battery indicator, rear-panel external DC input (9-16V 160mA) and single PP3 size battery compartment, providing at least 5 hours life (at 2 × 5mA microphone current) from an alkaline battery.

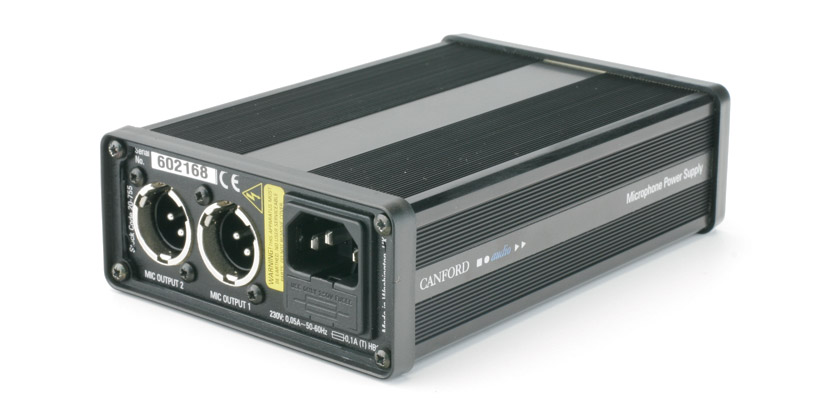

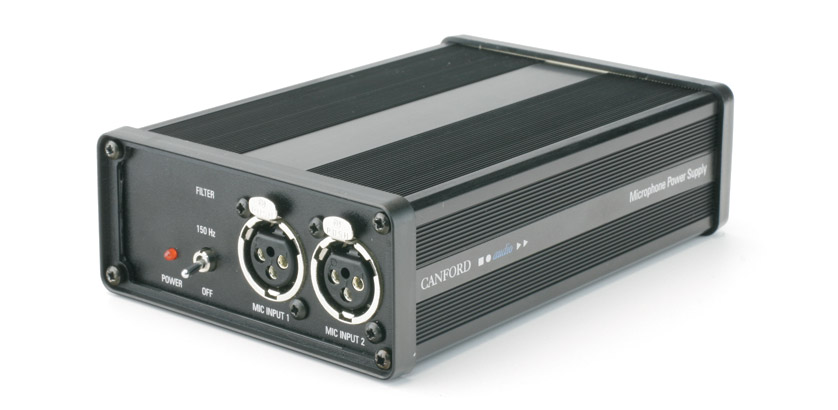

Mains version has IEC mains input on the rear and front-panel power-on indicator. 48V phantom power meets IEC268/BS6840 Part 15 fully, with 10mA maximum output current.
Dimensions:||170(l) x 110(w) x 47(h)mm (20-752), 220(l) x 110(w) x 47(h)mm (20-755) |
Weight:||Battery version 590g; mains version 810g.|
Manufactured by Canford.
