HIROSE (HRS) MULTIPIN CONNECTORS

Hirose Electric manufacture several ranges of multipin connectors, which are widely used on Japanese manufactured video equipment. Manufacturer’s technical data on specific types is available on request.

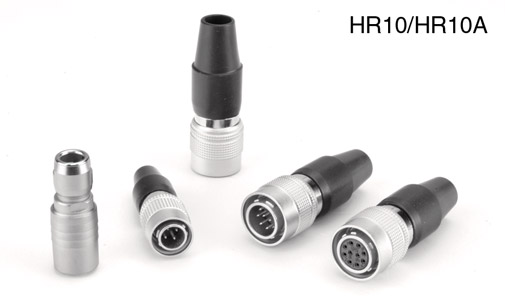

HR10 Series

Miniature 4, 6 and 12 pin connectors, 5 keyway orientation guides and sliding ring locking (pull to de-latch, automatic latch engagement on insertion). Pin contacts recessed to prevent damage when trying to find correct keyway alignment. Matt nickel finish zinc/brass alloy shells, gold plated pins. Cable diameter range 4.8-5.2mm (4 and 6 pin types), 6.8-7.2mm (12 pin types), smaller cables should be brought up to this diameter by using Hellerman sleeving. The plug insert is screwed into the shell, but as the main (sliding) part will rotate, the best method is to mate the insert with a chassis-mount type, and use this to hold the insert while the shell is screwed on. An open ended spanner is useful to tighten body onto insert, and cable clamp onto body, size 8mm across flats for 4 and 6 pin types, 11mm across flats for 12 pin type.

HR10A Series

A lower cost version of the HR10 series, these are fully compatible. Details are as for HR10, except that bodies have a knurled outer surface, and cable glands are plastic (metal on HR10 series).

JRC Series (Sony 'Q')

14 and 26 pin connectors, with 5 keyway orientation guides and 3 aperture bayonet locking ring on cable types. Matt nickel finish aluminium alloy shells. Inserts retained by 1.27mm hex socket head screw, suitable hex key available. Inter-mateable with other connectors to JIS C54JZ specification, also known as Sony ‘Q’ type connector. Maximum cable diameter 11.0mm (14 pin) and 12.2mm (26 pin).

RM15T Series

10 and 12 pin circular connectors, with screw type locking rings. Matt nickel plated finish aluminium alloy shells, and solder contacts. Inserts retained by 1.27mm hex head socket screw, suitable hex key available. There are three items available for each pin configuration and for each sex: cable mount with locking ring, panel mount with thread, and cable mount with thread (for extension cables). Maximum cable diameter 8mm.

1600 Series

Now discontinued, some of this range remains available while stocks last.

  Description Price (£) Add to basket
HIROSE HR10-7P-4S(73) CONNECTOR 4 pin female cable
1+ £20.92
10+ £19.98
50+ £19.04
100+ £18.10
HIROSE HR10-7P-4P(73) CONNECTOR 4 pin male cable
1+ £17.72
10+ £16.92
50+ £16.13
100+ £15.33
HIROSE HR10-7R-4S(73) CONNECTOR 4 pin female panel

Special order product. Order cancellations may incur charges.

1+ £12.58
10+ £12.01
50+ £11.45
100+ £10.88
HIROSE HR10-7J-4S(73) CONNECTOR 4 pin female cable (mates HR10-7P-4P)
1+ £18.88
10+ £18.03
50+ £17.18
100+ £16.33
HIROSE HR10-7J-4P(73) CONNECTOR 4 pin male cable (mates HR10-7P-4S)
1+ £16.18
10+ £15.45
50+ £14.72
100+ £14.00
HIROSE HR10-7P-6P(73) CONNECTOR 6 pin male cable

1 available at clearance price.

Clearance £9.50
1+ £18.66
HIROSE HR10-7J-6S(73) CONNECTOR 6 pin female cable (mates HR10-7P-6P)

Special order product. Order cancellations may incur charges.

1+ £20.98
10+ £20.04
50+ £19.09
100+ £18.15
HIROSE HR10-7J-6P(73) CONNECTOR 6 pin male cable (mates HR10-7P-6S)

Special order product. Order cancellations may incur charges.

1+ £16.98
10+ £16.22
50+ £15.45
100+ £14.69
HIROSE HR10-10P-12S(73) CONNECTOR 12 pin female cable
1+ £33.00
10+ £31.52
50+ £30.03
100+ £28.55
HIROSE HR10-10P-12P(73) CONNECTOR 12 pin male cable

Special order product. Order cancellations may incur charges.

1+ £23.22
10+ £22.18
50+ £21.13
100+ £20.09
HIROSE HR10A-7P-4S(73) CONNECTOR 4 pin female cable
1+ £12.60
10+ £12.03
50+ £11.47
100+ £10.90
HIROSE HR10A-7P-4P(73) CONNECTOR 4 pin male cable
1+ £11.98
10+ £11.44
50+ £10.90
100+ £10.36
HIROSE HR10A-7R-4S(73) CONNECTOR 4 pin female panel
1+ £5.48
10+ £5.23
50+ £4.99
100+ £4.74
HIROSE HR10A-7R-4P(73) CONNECTOR 4 pin male panel
1+ £5.84
10+ £5.58
50+ £5.31
100+ £5.05
HIROSE HR10A-7P-6S(73) CONNECTOR 6 pin female cable

Special order product. Order cancellations may incur charges.

1+ £12.40
10+ £11.84
50+ £11.28
100+ £10.73
HIROSE HR10A-7P-6P(73) CONNECTOR 6 pin male cable
1+ £12.60
10+ £12.03
50+ £11.47
100+ £10.90
HIROSE HR10A-7R-6S(73) CONNECTOR 6 pin female panel
1+ £5.50
10+ £5.25
50+ £5.01
100+ £4.76
HIROSE HR10A-7R-6P(73) CONNECTOR 6 pin male panel

3 available at clearance price.

Clearance £2.00
1+ £6.50
HIROSE HR10A-10P-10S(73) CONNECTOR 10 pin female cable
1+ £15.74
10+ £15.03
50+ £14.32
100+ £13.62
HIROSE HR10A-10P-10P(73) CONNECTOR 10 pin male cable
1+ £16.80
10+ £16.04
50+ £15.29
100+ £14.53
HIROSE HR10A-10R-10S(71) CONNECTOR 10 pin female panel
1+ £8.56
10+ £8.17
50+ £7.79
100+ £7.40
HIROSE HR10A-10R-10P(73) CONNECTOR 10 pin male panel
1+ £9.60
10+ £9.17
50+ £8.74
100+ £8.30
HIROSE HR10A-10P-12S(73) CONNECTOR 12 pin female cable
1+ £16.34
10+ £15.60
50+ £14.87
100+ £14.13
HIROSE HR10A-10P-12P(73) CONNECTOR 12 pin male cable
1+ £17.54
10+ £16.75
50+ £15.96
100+ £15.17
HIROSE HR10A-10R-12S(73) CONNECTOR 12 pin female panel
1+ £8.62
10+ £8.23
50+ £7.84
100+ £7.46
HIROSE HR10A-10R-12P(73) CONNECTOR 12 pin male panel

3 available at clearance price.

Clearance £6.00
1+ £9.96
HIROSE HR10A-10J-12S(73) CONNECTOR 12 pin fem. cable (mates HR10A-10P-12P)
1+ £16.54
10+ £15.80
50+ £15.05
100+ £14.31
HIROSE HR10A-10J-12P(73) CONNECTOR 12 pin male cable (mates HR10A-10P-12S)
1+ £18.22
10+ £17.40
50+ £16.58
100+ £15.76
HIROSE JRC16BP-14S(71) CONNECTOR 14 pin female cable (CCQ type)

This item is discontinued, available only while stocks last. Prices may have been reduced to clear stock. 1 available at clearance price.

Clearance £10.00
1+ £33.70
HIROSE JRC16BP-14P(71) CONNECTOR 14 pin male cable (CCQ type)

This item is discontinued. Please contact Technical Support for advice on alternatives.

HIROSE JRC16BR-14S(71) CONNECTOR 14 pin female panel (CCQ type)

This item is discontinued. Please contact Technical Support for advice on alternatives.

HIROSE JRC16BR-14P(71) CONNECTOR 14 pin male panel (CCQ type)

This item is discontinued. Please contact Technical Support for advice on alternatives.

HIROSE JRC21BP-26S(71) CONNECTOR 26 pin female cable (CCZ-A type)
1+ £41.00
10+ £39.16
50+ £37.31
100+ £35.47
HIROSE JRC21BPA-26P(71) CONNECTOR 26 pin male cable (CCZ-A type)
1+ £40.90
10+ £39.06
50+ £37.22
100+ £35.38
HIROSE JRC21BRA-26S(71) CONNECTOR 26 pin female panel (CCZ-A type)
1+ £17.40
10+ £16.62
50+ £15.83
100+ £15.05
HIROSE JRC21BR-26P(71) CONNECTOR 26 pin male panel (CCZ-A type)
1+ £17.22
10+ £16.45
50+ £15.67
100+ £14.90
HIROSE RM15TPD-10P(71) CONNECTOR 10 pin male cable (ring)
1+ £19.06
10+ £18.20
50+ £17.34
100+ £16.49
HIROSE RM15TRD-10S(71) CONNECTOR 10 pin female panel

This item is discontinued. Please contact Technical Support for advice on alternatives.

HIROSE RM15TJD-10S(71) CONNECTOR 10 pin female cable (thread)
1+ £18.12
10+ £17.30
50+ £16.49
100+ £15.67
HIROSE RM15TJD-10P(71) CONNECTOR 10 pin male cable (thread)

Special order product. Order cancellations may incur charges.

1+ £17.40
10+ £16.62
50+ £15.83
100+ £15.05
HIROSE RM15TPD-12S(71) CONNECTOR 12 pin female cable (ring)
1+ £25.28
10+ £24.14
50+ £23.00
100+ £21.87
HIROSE RM15TPD-12P(71) CONNECTOR 12 pin male cable (ring)
1+ £19.82
10+ £18.93
50+ £18.04
100+ £17.14
HIROSE RM15TRD-12S(71) CONNECTOR 12 pin female panel

1 available at clearance price.

Clearance £8.00
1+ £14.00
HIROSE RM15TRD-12P(71) CONNECTOR 12 pin male panel

Special order product. Order cancellations may incur charges.

1+ £10.06
10+ £9.61
50+ £9.15
100+ £8.70
HIROSE RM15TJD-12S(71) CONNECTOR 12 pin female cable (thread)

Special order product. Order cancellations may incur charges.

1+ £18.54
10+ £17.71
50+ £16.87
100+ £16.04
HIROSE RM15TJD-12P(71) CONNECTOR 12 pin male cable (thread)

1 available at clearance price.

Clearance £10.00
1+ £13.04
HIROSE 1634ASTA 34 pin panel housing

This item is discontinued. Please contact Technical Support for advice on alternatives.

HIROSE HEX KEY
1+ £0.75
10+ £0.72
50+ £0.68
100+ £0.65
HIROSE RM15TPD-10S(71) CONNECTOR 10 pin female cable (ring)

Special order product. Order cancellations may incur charges.

1+ £16.80
10+ £16.04
50+ £15.29
100+ £14.53
HIROSE RM15TRD-10P(71) 10 pin male panel

This item is discontinued. Please contact Technical Support for advice on alternatives.
