30-130 CANFORD HST-HD CABLE 1 pair

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.70 1.36 1.31 1.26 1.15

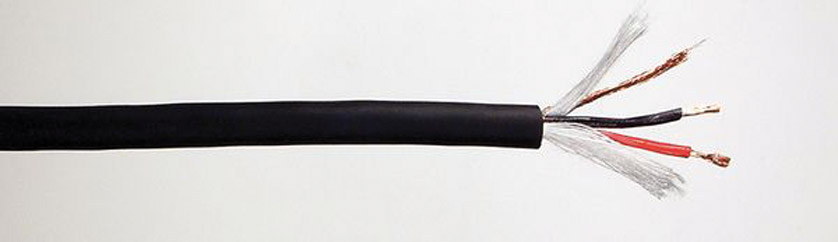

CANFORD HST-HD CABLE 1 pair
CANFORD HST-HD CABLE 1 pairCANFORD HST-HD CABLE 1 pair

Description

Product resources

HST-HD AND HST-HD-R - HEAVY DUTY HELICAL SCREENED STRANDED CONDUCTOR TWIN CABLE

These cables follow the same design and construction principles as the standard HST and HST-R, but have larger cross section conductors (0.5mm²) for applications where a lower DC resistance is required.

Technical Specification:

Construction:As the style of HST
Conductors:64/0.10mm (0.50mm²) plain copper wire
Insulation:PVC O.D. 1.86mm (HST-HD), 1.70mm (HST-HD-R), red, black
Twisting and lay:2 × 0.5mm² plus 2 × cotton fillers 30mm lay length
Screen:0.1mm lapped plain copper wire, 95% optical coverage
Overall jacket:HST-HD PVC, HST-HD-R Polyurethane, O.D. 7.2mm, semi-matt black
Max. conductor resistance:4 ohms/100 metres
Weight:HST-HD 6.1 kg/100m, HST-HD-R 5.6/kg/100m
Reel lengths:100m and 500m
Cut lengths:Available in any multiple of 1 metre
