Description
MCS - MULTICORE SPEAKER CABLE 2.5mm sq. conductors

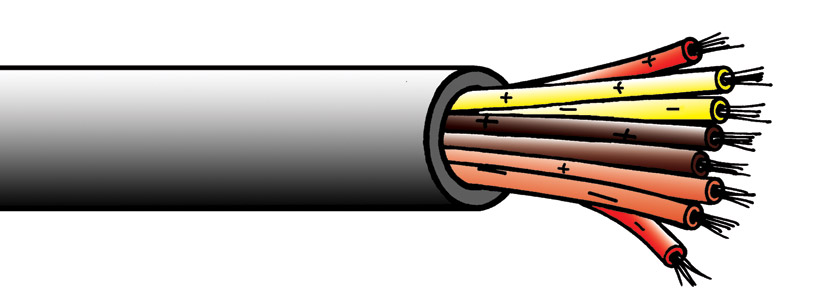

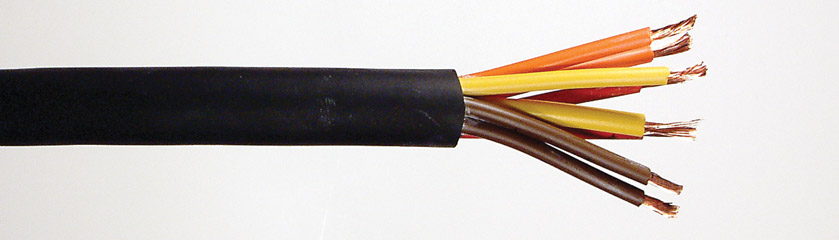

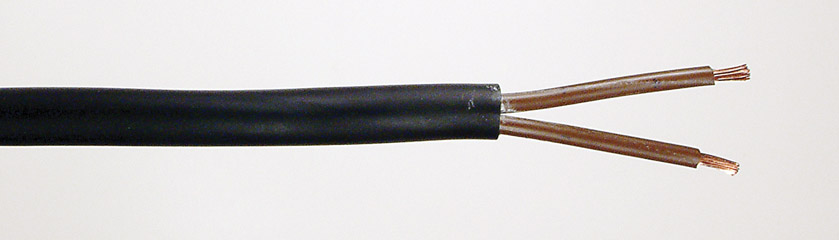

Two, four and eight-core 2.5mm² cross section extra-flexible multicore cable for loudspeaker wiring. Core pairs are colour coded using the resistor colour code as there is no standard coding for loudspeaker cables (not mains colour codes) and printed for unambiguous phasing. Cores are laid together specifically to suit the contact configuration of the Neutrik ‘Speakon’ loudspeaker connectors, for ease of termination. Eight-core type is designed for use with Neutrik NL8FC connectors, but is suitable for use with many other multipole connectors. Four-core type suits Neutrik NL4FC, Amphenol EP4 and AP4 types and many others. Cores are colour coded and printed as follows:
|
Core no/ | | | | | | | | |
|---|
|
Neutrik pin no. | 1+ | 1– | 2+ | 2– | 3+ | 3– | 4+ | 4– |
|---|
|
Colour | Brown | Brown | Red | Red | Orange | Orange | Yellow | Yellow |
|---|
|
Marking | + | – | + | – | + | – | + | – |
|---|
Technical Specification:
|
Conductors: | 50/0.25mm (2.5mm²) |
|
Insulation: | PVC, radial thickness 0.6mm, OD 3.4mm, coloured and marked as above |
|
Lay-up: | 2, 4 or 8 cores printed black and laid together |
|
Outer jacket: | Soft PVC, matt black |
|
Overall diameter: | MCS2 9.8mm, MCS4 11.5mm, MCS8 14.5mm |
|
Weight: | MCS2 14.5kg/100m, MCS4 20.0kg/100m, |
|
| MCS8 35.0kg/100m |
|
Reel lengths: | 500m |
|
Cut lengths: | Available in any multiple of 1 metre |
