Description

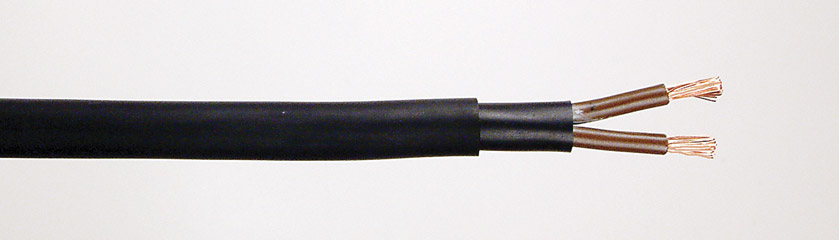

MCS-HD - MULTICORE SPEAKER CABLE 4mm sq. conductors
Two four and eight-core 4mm sq. cross-section extra-flexible multicore cable for loudspeaker wiring. Core pairs are colour coded using the resistor colour code as there is no standard coding for loudspeaker cables (not mains colour codes) and printed for unambiguous phasing. Cores are laid together specifically to suit the contact configuration of the Neutrik ‘Speakon’ loudspeaker connectors, for ease of termination.

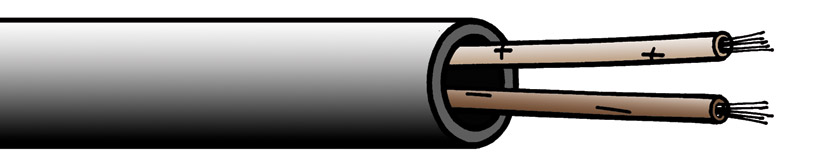

Cores are colour coded and printed as follows:
|
Core no./ | | | | | | | | | |
|---|
|
Neutrik pin no.: | 1+ | 1– | 2+ | 2– | 3+ | 3– | 4+ | 4– | |
|---|
|
Colour: | Brown | Brown | Red | Red | Orange | Orange | Yellow | Yellow | |
|---|
|
Marking: | + | – | + | – | + | – | + | – | |
|---|
Technical Specification:
|
Conductors: | 56/0.3mm (4mm²) |
|
Insulation: | PVC, radial thickness 0.6mm, OD 4.2mm, coloured and marked as above |
|
Lay-up: | 2 or 4 cores printed black and laid together |
|
Outer jacket: | Soft PVC, matt black |
|
Overall diameter: | MCS-HD 2 11.0mm, MCS-HD 4 13.0mm, MCS-HD 8 16.50mm |
|
Weight: | MCS-HD 2 21.0kg/100m, MCS-HD 4 30.0kg/100m, MCS-HD 8 57.0kg/100m |
|
Reel lengths: | 500m |
|
Cut lengths: | Available in any multiple of 1 metre |
Manufactured to Canford design.
