DRAKA CATEGORY 6 - SOLID CONDUCTOR MULTIPAIR DATA CABLES Standard and Low Fire Hazard
The computer industry 100 ohm Category 6 standard provides performance up to 250MHz, and is suitable for Gigabit Ethernet and other high speed applications. Category 6 defines more stringent specifications than those applicable to Category 5E, particularly in crosstalk between pairs.
Unlike Category 5E where there is just one main cable lay up (4 twisted pairs, laid up together), there are many for Category 6, of varying complexity (and manufacturing cost). These variations deliver enhanced crosstalk performance, which may be appropriate in some applications (primarily in improved transfer impedance and coupling attenuation).

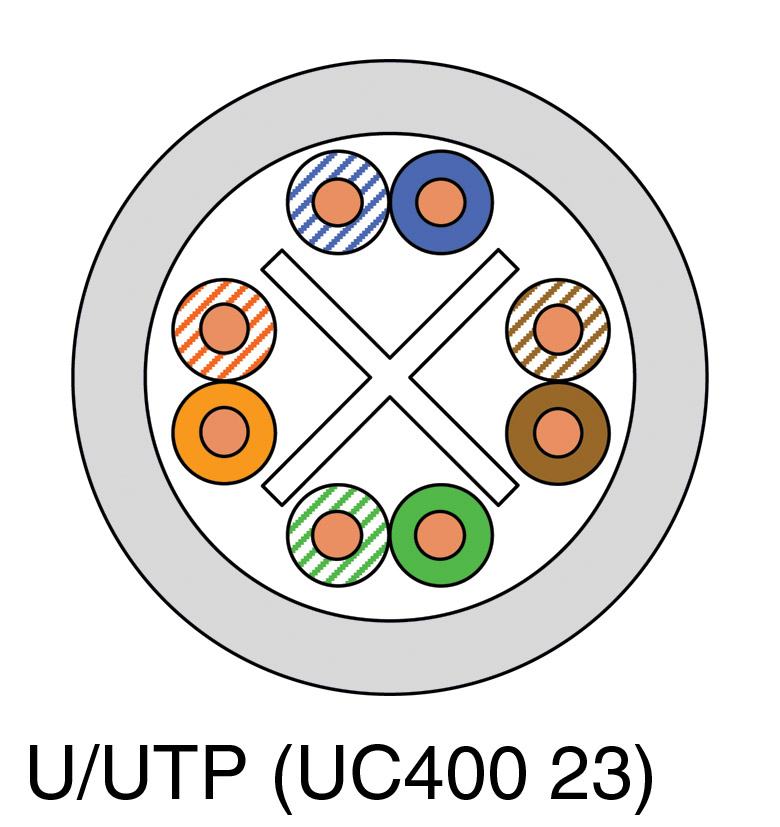

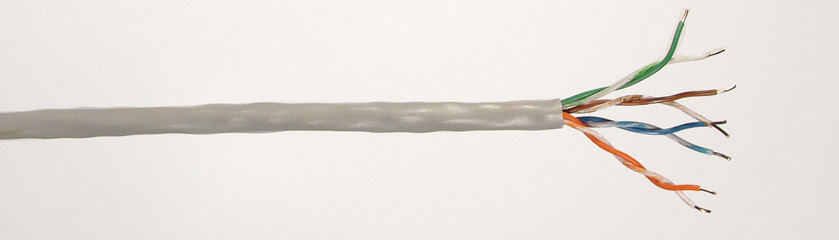

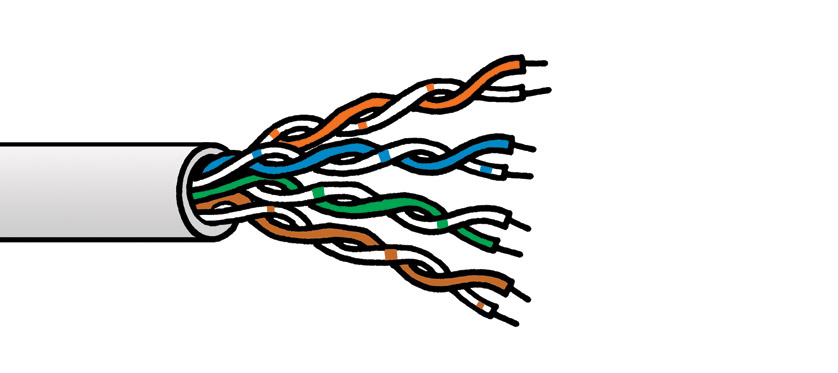

The basic U/UTP design has a similar construction to Category 5E, but obtains some of the enhanced performance by holding the pairs apart and in a more fixed geometrical relationship by the use of a non-metallic cross-shaped ‘spline’. The U/FTP type has a Draka patented foil screen over pairs 1 and 2 (blue, orange) and another over pairs 3 and 4 (green and brown). The S/FTP (HS23) type is like U/FTP but includes an overall braid screen. The S/FTP (SS23) type has individual foil screens for all four pairs, plus an overall braid screen.
Note that the different constructions give different overall diameters, care should therefore be taken in selection of connectors in the unlikely event that these are required. The cables in this section are solid conductor designs, suitable for installation and are not recommended for patching (RJ45 connectors for Category 6 typically have an aperture able to accept a cable diameter of approx. 6mm).
Cables are available with standard (PVC) or Low Fire Hazard (‘LSOH’) jackets.
See Category 6A cables for performance up to 500MHz.
Technical Specification:
|
Conductors: | 1/0.56mm (23AWG) plain copper |
|
Insulation: | Solid polyethylene (U/UTP) or foamed polyethylene (-/FTP types) |
|
Lay-up: | Two insulated conductors twisted together, pairs twisted together. |
|
Pair screens: | U/UTP none, -FTP types aluminium/polyester tape (aluminium side in) (see explanatory note in text above) |
|
Drain wire: | 1/0.4mm tinned copper wire, laid up with cores (U/FTP type only) |
|
Overall jacket: | PVC or LFH material, grey, O.D. 6.2mm (U/UTP), blue O.D. 6.5mm (U/FTP) , blue O.D.6.9mm (S/FTP HS23) or blue O.D. 7.4mm (S/FTP SS23). |
|
Minimum | |
|
bending radius: | 30mm (U/UTP), otherwise 80mm |
|
Impedance: | 100 +/- 15 ohms |
|
Velocity ratio: | 79% |
|
Attenuation (U/UTP): | 6.0dB/100m (10MHz) |
|
| 19.1dB/100m (100MHz) |
|
| 27.0dB/100m (200MHz) |
|
| 32.0dB/100m (250MHz) |
|
Attenuation (-/FTP types): | 5.4dB/100m (10MHz) |
|
| 17.4dB/100m (100MHz) |
|
| 25.0dB/100m (200MHz) |
|
| 28.1dB/100m (250MHz) |
|
Near end crosstalk (U/UTP): | 63dB (10MHz) |
|
| 48dB (100MHz) |
|
| 44dB (200MHz) |
|
| 42dB (250MHz) |
|
Near end crosstalk (-/FTP types): | 100dB (10MHz) |
|
| 100dB (100MHz) |
|
| 92dB (200MHz) |
|
| 90dB (250MHz) |
|
Weight: | 4.0kg/100m |
|
Reel length: | 500 metre reels, or box-paks of 305 metres |
|
Cut lengths: | Available in any multiple of 1 metre |
Note:
The standard description convention for Category cables is as follows -
|
U/UTP | Unscreened overall, unscreened twisted pairs (often also called UTP) |
|
F/UTP | Foil screeened overall, unscreened twisted pairs (often also called FTP) |
|
U/FTP | Unscreened overall, foil screened twisted pairs |
|
F/FTP | Foil screened overall, foil screened twisted pairs |
|
F/FTP | Foil screened overall, foil screened twisted pairs |
|
S/FTP | Braid screened overall, foil screened twisted pairs |
