60-1700S6 BELDEN 1700S6 CABLE

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 13.83 11.06 10.65 10.23 9.40
CLEARANCE Price £ 4.50
The Clearance price is ONLY applicable to stock in our warehouse that we want to clear. If you order more than we have in stock, we will reduce your order to the quantity we have available at the Clearance price.
BELDEN 1700S6 CABLE

Description

BELDEN 1700S6 - CATEGORY 5E SOLID CONDUCTOR UNSCREENED MULTIPAIR BANANAPEEL UNJACKETED MULTI CABLE

A multicore version of Cat5E F/UTP cable. Cores are numbered for identification.

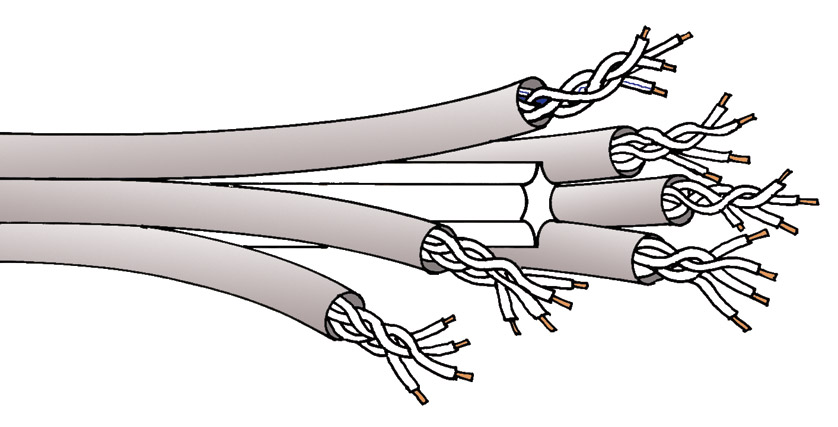

Belden's (patent pending) 'Banana Peel' cable technology fixes individual cables to a center spline or substrate. The individual cables can be easily peeled away, eliminating the need for composite cables with an overall jacket.

Technical Specifications:

Conductors:1/0.5mm plain copper
Insulation:Foamed polyolefin, according to CW1308 colour code
Lay-up:Two insulated conductors twisted and bonded together, pairs twisted together
Screen:Aluminium/polyester/aluminium tape
Overall jacket:PVC, grey, O.D. 5.18mm
Impedance:100 ohms +/- 15 ohms
Capacitance:55.8pF/m nominal
Lay up:Individually numbered, 6 cores, 'banana peel' format
Overall jacket:None
Overall bundle diameter:15.24mm, approximately
Weight:22.19kg/100m
Reel length:305m
Cut lengths:Available in any multiple of 1 metre
