58-376 SIFAM VU METER R32AF

each (ex. VAT) 1+
Price £ 138.00
This is the last stock Canford can obtain for this item

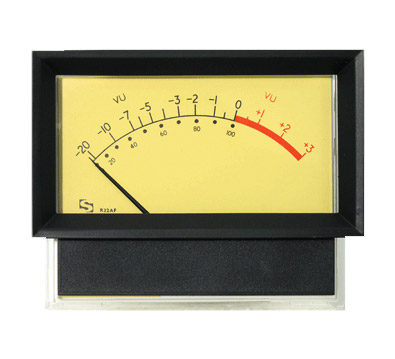

SIFAM VU METER R32AF

Description

SIFAM VU METERS

Sifam VU meters, fully meeting BS6840: Part 17:1991 and IEC268-17:1990, are essentially low range AC volt meters suitable for connecting across a 600 ohm line. They are self-contained except for requiring an external 3.6k ohm resistor.

The meters are calibrated for use with a 3.6k ohm resistor so that reference deflection (0 VU) is produced by a signal 4 VU above 1mW into 600 ohm (1.228V). The standard scale marking is –20 to 0VU in black and 0 to + 3 VU in red, all on a dark buff background.

The twin VU meter is housed in the type 74 case. Dimensions and case styles are exactly as for the corresponding style PPMs. Note the prefix R is used for VU style meters.

Note: Sifam have ceased manufacture of this series of full specification VU meters. The ‘audio level meter’ series remain in production.
