Description
MIL26 BAYONET-LOCK MULTIPIN AUDIO OB CONNECTORS
Derived from MIL C 26482 and BS9522 specification, these 26-pin bayonet- lock connectors are used extensively for outside broadcast multi-channel audio connection. They are suitable for termination to flexible multi-pair and multi-quad cables such as Canford SQM8. A range of rugged breakout stage boxes are also available, fitted with a MIL26 type panel plugs and sockets allowing breakout to male and female XLR connectors.

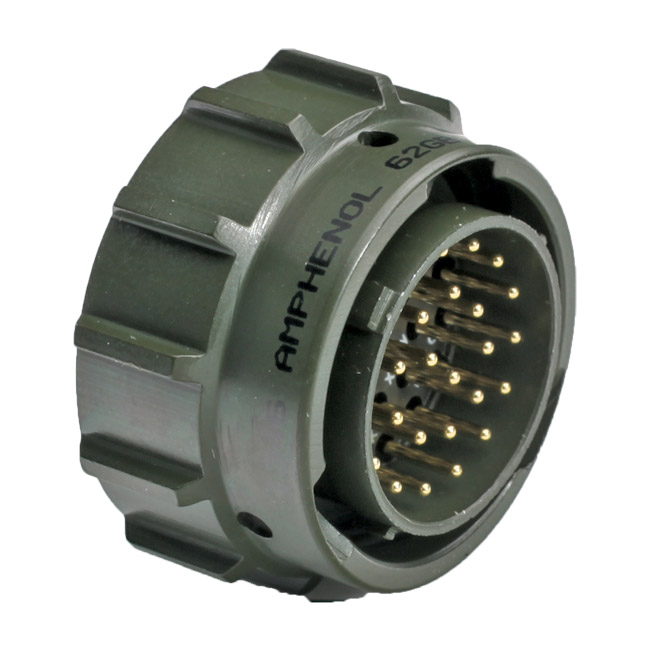

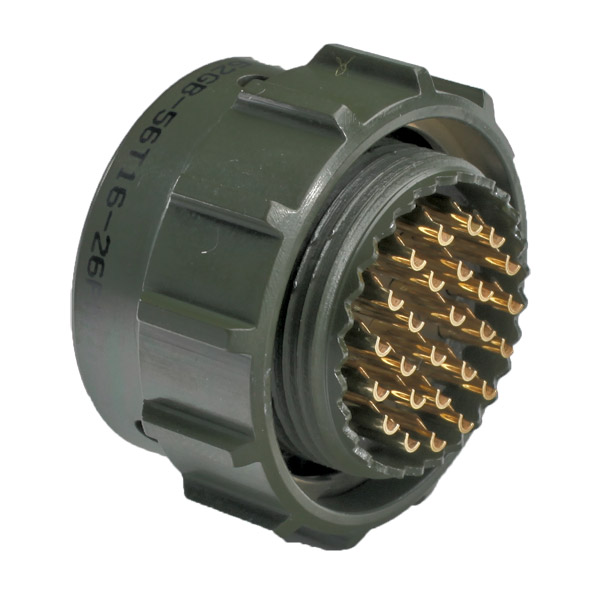

Connector bodies are aluminium with hard-wearing black plating. Contacts are solder type, gold-plated copper alloy and are fixed in the insulator. Plugs are fitted with male contacts and an easy-grip, coarse-ribbed locking ring (also known as an ‘Arctic nut’). Sockets have female contacts and bayonet pins.
Cable connectors comprise a cable plug or socket plus a special screw-on ferrule that provides cable support and a specially shaped adhesive-lined heat-shrink boot.
The panel plug consists of a plug connector with a square mounting flange. The flange is 31.0mm x 31.0mm x 2.9mm thick, with 4 x M3 tapped holes at 24.6mm centres. Panel centre hole required: 24.0mm.
The panel socket flange is 31.0mm x 31.0mm x 1.75mm thick, with 4 x 3mm diameter clearance holes at 24.6mm centres. Panel centre hole required: 24.0mm.
Optional accessories: Moulded PVC splashproof covers, 'gaiters', provide protection for the connectors in use and are available in three colours. These must be fitted onto the cable before the connector is fitted. Flat and angled 2U panels are available, see 'Tailgate panels'. For suitable starquad cable see Canford SQM8, stock code 31-708, and for compatible MIL26 breakout boxes see 'Outside Broadcast Breakout Stageboxes'.
41 pin MIL41 types are also available to special order, contact Sales for details.
Wiring Conventions
There is a UK broadcast industry wiring convention for the termination of SQM8 and SQM7 (BBC PIF28/1) onto MIL26 types (the BBC convention), stock code 02-213 which is available from the Tech Zone at www.canford.co.uk or by contacting Technical support.
Termination Service
A termination service is available for these connectors onto new or free issue cables see Canford Cable Termination. Re-termination can also be undertaken on damaged cables.
