36-905 S-VHS CABLE 2 core

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 2.29 1.83 1.76 1.69 1.56
S-VHS CABLE 2 core
S-VHS CABLE 2 coreS-VHS CABLE 2 core

Description

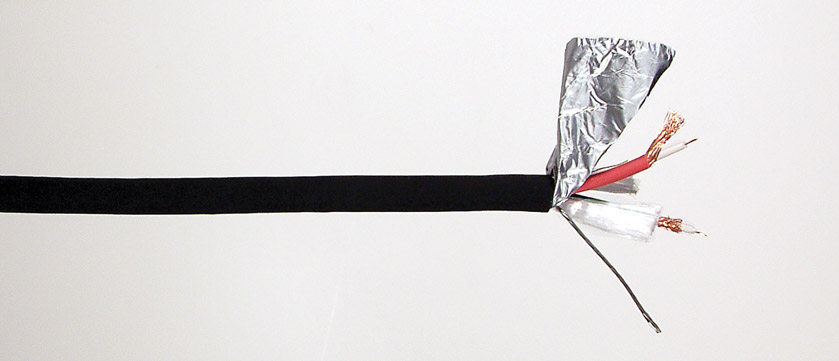

S-VHS CABLE

Miniature, individually-jacketed double coaxial cable for use in S-VHS applications, with RCA (phono), BNC and Scart connectors. S-VHS is also sometimes known as Y/C, due to the separate transmission of luminance and chrominance signals.

Technical Specification:

Cable size group:J
Inner conductor:1/0.37mm bare copper
Dielectric:Cellular polyethylene, 1.5mm (+0.10,-0.05mm) O.D.
Screen:64/0.1mm tinned copper braid
Construction:Coaxial cable
Jacket:PVC, OD 2.6mm (±0.2mm)

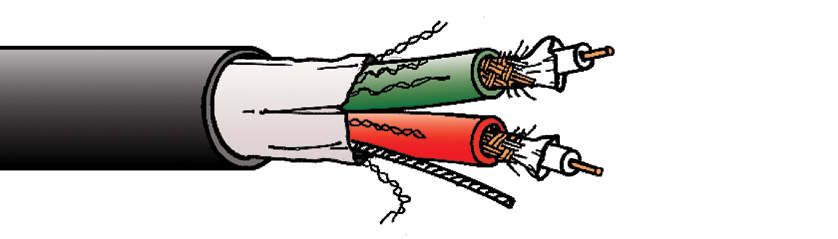

Lay up:2 coaxial cores, one with red jacket, one green, plus soft fillers and 7/0.25mm tinned copper drain wire
Overall screen:Aluminium/PET foil
Overall jacket:PVC, matt black, OD 6.60mm (±0.25mm)
Impedance:75 ohms
Reel length:100 metres
Cut lengths:Available in any multiple of 1 metre
