Deltron

43-5095

DELUXE RCA (PHONO) PANEL SOCKET Feed-through, greenGreen

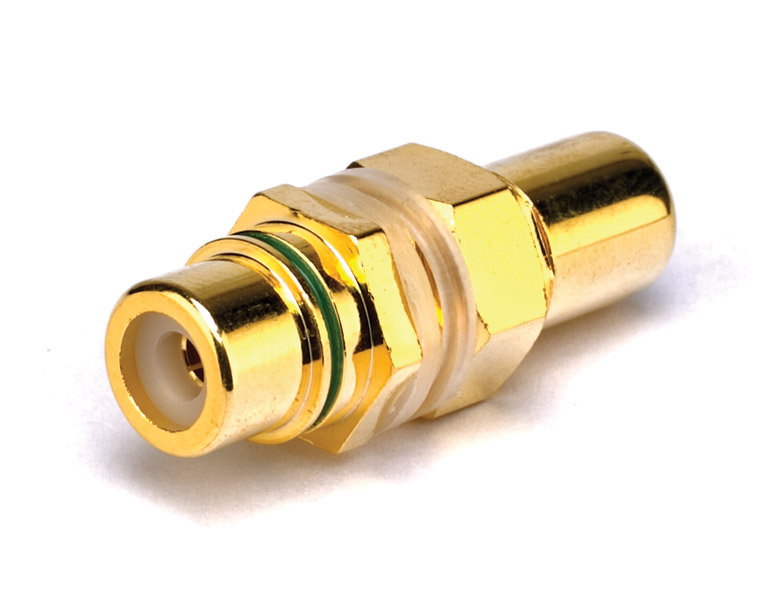

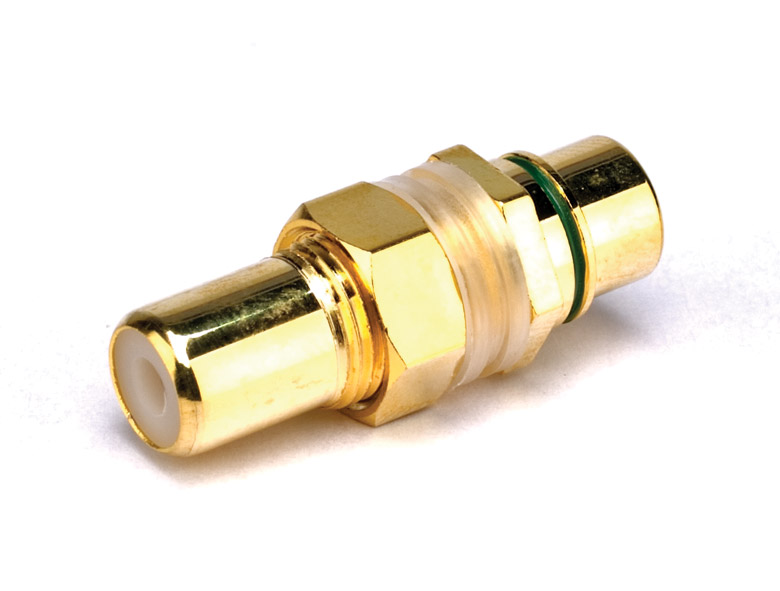

DELUXE RCA (PHONO) PANEL SOCKET Feed-through, green
DELUXE RCA (PHONO) PANEL SOCKET Feed-through, greenDELUXE RCA (PHONO) PANEL SOCKET Feed-through, green

DELTRON RCA (PHONO) CONNECTORS

Deltron are the largest and most well known manufacturer of phono connectors in the UK. All plugs (except economy type 425) feature a patented T-slot spring action on the ring/shell contact, ensuring positive contact with any make of phono socket. Note that in many countries this connector type is known as the RCA connector.

Plugs

Type 413

Plastic cover connector with nickel plated hollow pin. Cable entry diameter 4.0mm.

Type 330

The most popular plug in the range. Hollow silver plated brass tip, nickel plated brass cover, noryl insulation, wrap-over type cable clamp. Supplied with nickel plated spring style strain relief cable maximum entry diameter 5.5mm, strain relief can be omitted to increase cable entry diameter to 7.2mm.

Type 331

As type 330, but hollow flash gold plated tip, flash gold plated body and strain relief.

Type 332

As type 330, but hollow flash gold plated tip, black chrome plated body and strain relief.

Type 346

Solid flash gold plated brass tip, anodised aluminium cover (8mm longer than 330 series), PTFE insulation, larger wrap-over type cable clamp. Supplied with black chrome plated spring style strain relief, cable entry diameter 5.5mm, strain relief can be omitted to increase cable entry diameter to 7.2mm.

Type 321

Fully shrouded version of type 346. As internal spec. of 346 but with black chrome plated cover. Supplied with black chrome plated spring style strain relief, cable entry diameter 5.5mm, strain relief can be omitted to increase cable entry diameter to 7.2mm.

In-line sockets

Type 433

Matching style to type 413 plugs. Cable entry diameter 4.0mm.

Panel sockets

Type 431

Panel mounting turned brass socket, nickel plated, nut fixing, black plastic inserts. Panel hole 7.2mm, supplied singly.

Deluxe sockets

Gold plated panel mounting sockets, nut fixing, available as feed-through, solder or PCB mount types, all with coloured rings for identification. Teflon insulation, earth contact making first on plug insertion. Standard type supplied with panel insulating spacers for use if signal earth is required to be isolated from chassis earth. Feed-through type require a panel hole 9.4mm (without spacers) or 10.8mm (with spacers). Solder type require a panel hole 7.8mm (without spacers) or 9.7mm (with spacers). PCB mount types have chassis earth isolated from signal earth and require a panel hole 12.5mm. Note that these connector types are not manufactured by Deltron, but are included in this entry for ease of reference.

Universal series

Type 431 mounted on a Canford custom moulded part, providing connectors using the same (24mm diameter) panel mountings as the Neutrik ‘D’ series XLR connectors, jack sockets and loudspeaker connectors. Stock codes 49-283 (black) and 49-293 (white). For full details see Universal series connectors.

  Description Price (£) Add to basket
DELTRON 413 RCA (PHONO) PLUG Black plastic shell, nickel cont BlackNickel Stock code:
1+ £0.91
10+ £0.87
50+ £0.85
100+ £0.83
DELTRON 330 RCA (PHONO) PLUG Nickel shell, silver contacts NickelSilver Stock code:
1+ £1.43
10+ £1.37
50+ £1.34
100+ £1.31
DELTRON 331 RCA (PHONO) PLUG Gold shell, gold contacts GoldGold Stock code:
1+ £2.27
10+ £2.17
50+ £2.13
100+ £2.08
DELTRON 332 RCA (PHONO) PLUG Black shell, gold contacts BlackGold Stock code:
1+ £2.27
10+ £2.17
50+ £2.13
100+ £2.08
DELTRON 346 RCA (PHONO) PLUG Black shell, gold contacts BlackGold Stock code:
1+ £3.39
10+ £3.23
50+ £3.17
100+ £3.10
DELTRON 346 RCA (PHONO) PLUG Red shell, gold contacts RedGold Stock code:
1+ £3.39
10+ £3.23
50+ £3.17
100+ £3.10
DELTRON 321 RCA (PHONO) PLUG Blk shell, gold cont, red marker GoldRed Stock code:

This item is discontinued, available only while stocks last.

1+ £7.09
10+ £6.77
50+ £6.63
100+ £6.49
DELTRON 433 RCA (PHONO) IN-LINE SOCKET Black plastic cover, nickel contacts BlackNickel Stock code:
1+ £1.14
10+ £1.09
50+ £1.06
100+ £1.04
DELTRON 431 RCA (PHONO) PANEL SOCKET Nickel contacts, black ring NickelBlack Stock code:
1+ £0.95
10+ £0.91
50+ £0.89
100+ £0.87
DELUXE RCA (PHONO) PANEL SOCKET Feed-through, black Black Stock code:
1+ £1.93
10+ £1.84
50+ £1.81
100+ £1.77
DELUXE RCA (PHONO) PANEL SOCKET Feed-through, red Red Stock code:
1+ £1.95
10+ £1.87
50+ £1.83
100+ £1.79
DELUXE RCA (PHONO) PANEL SOCKET Feed-through, yellow Yellow Stock code:
1+ £1.95
10+ £1.87
50+ £1.83
100+ £1.79
DELUXE RCA (PHONO) PANEL SOCKET Feed-through, green Green DELUXE RCA (PHONO) PANEL SOCKET Feed-through, green Stock code: 43-5095

4 available at clearance price.

Clearance £0.75
1+ £1.61
DELUXE RCA (PHONO) PANEL SOCKET Solder, black Black Stock code:
1+ £2.09
10+ £2.00
50+ £1.96
100+ £1.91
DELUXE RCA (PHONO) PANEL SOCKET Solder, red Red Stock code:
1+ £2.02
10+ £1.93
50+ £1.89
100+ £1.85
DELUXE RCA (PHONO) PANEL SOCKET PCB mounting, black Black Stock code:
1+ £4.20
10+ £4.02
50+ £3.93
100+ £3.85
DELUXE RCA (PHONO) PANEL SOCKET PCB mounting, red Red Stock code:
1+ £4.20
10+ £4.02
50+ £3.93
100+ £3.85
