46-4394 Mini5 LC-LC MM DUPLEX OM1 62.5/125 Fibre patch cable 2.0m, yellow

each (ex. VAT) 1+ 10+
Price £ 6.75 5.57

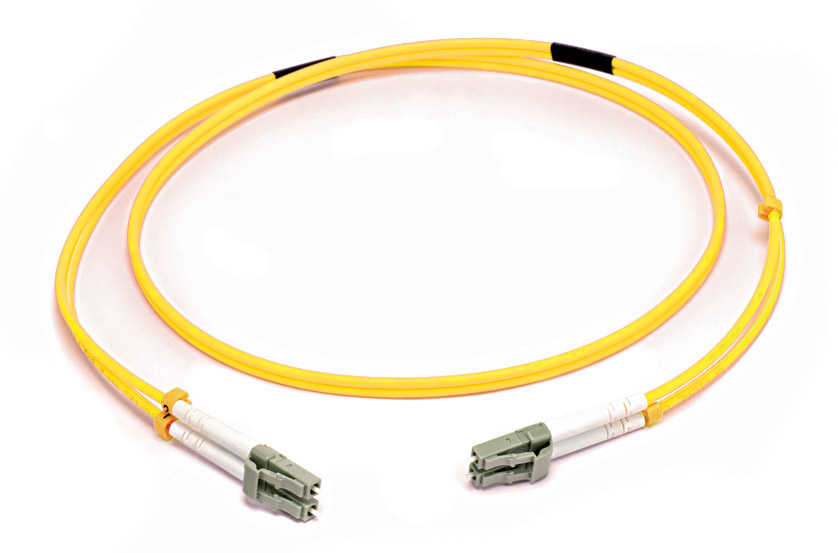

Mini5 LC-LC MM DUPLEX OM1 62.5/125 Fibre patch cable 2.0m, yellow

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

Mini5 DUPLEX FIBRE PATCHCORDS ST, SC and LC - Multimode and singlemode

Multimode and singlemode duplex patchcords, available terminated in combinations of ST, SC and LC connectors with 9, 50 and 62.5um cores. All types are assembled using tight-tolerance ceramic ferrules and 2.8mm 'zip' cable, and are supplied with individual certified test results. SC and LC 50um OM3 patchcords are rated to 10Gbit/s and are backwards compatible with OM2 1Gbit/s systems.

Suitable for simple point to point links within racks or systems, or as patch cables. The jacket is a low fire hazard (LFH/LSOH) halogen free polymer suitable for building installation and is fully compatible with all standard cable management accessories.

Colour coding:
Multimode 62.5/125 OM1:Yellow
Multimode 50/125 OM2 (1Gigabit):Orange
Multimode 50/125 OM3 (10Gigabit):Violet
Singlemode 9/125 OS1:Yellow

The more popular standard lengths are shown, however further standard lengths and pre-terminated multi-fibre installation cables are available to special order. Other connector types or combinations, APC ferrules, colours, custom lengths or single fibres may also be available to special order. Please contact Sales in the first instance with your requirements and they will be pleased to offer technical assistance and pricing.
