45-749 M&M BANTAM JACKFIELD 1U 2x48 brass jacks, stereo-pitch centre-space, black

each (ex. VAT) 1+ 5+ 10+
Price £ 278.60 267.50 256.30
Special order product. Order cancellations may incur charges

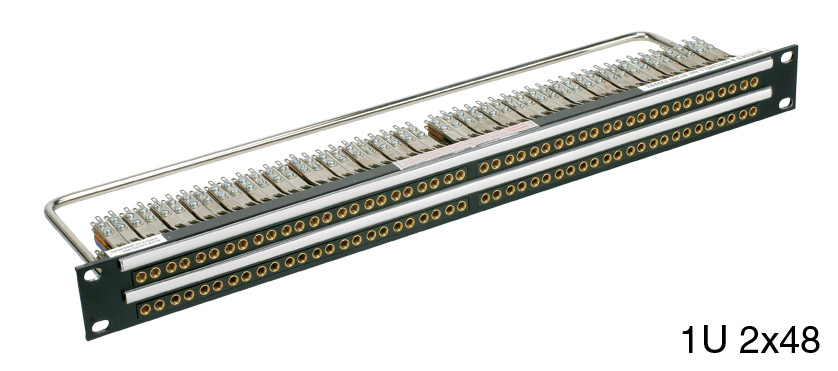

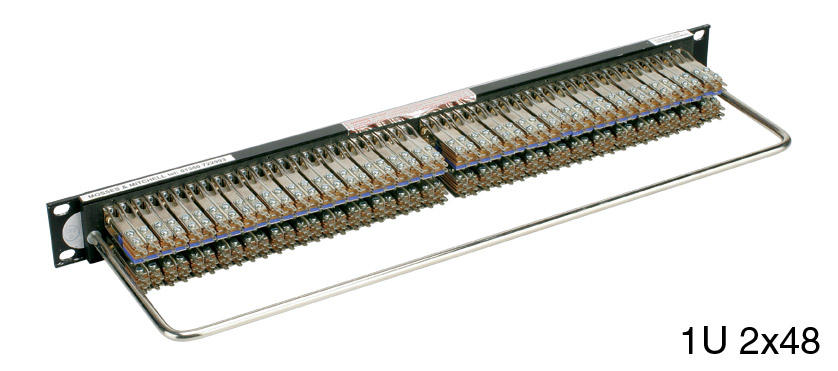

M&M BANTAM JACKFIELD 1U 2x48 brass jacks, stereo-pitch centre-space, black
M&M BANTAM JACKFIELD 1U 2x48 brass jacks, stereo-pitch centre-space, blackM&M BANTAM JACKFIELD 1U 2x48 brass jacks, stereo-pitch centre-space, blackM&M BANTAM JACKFIELD 1U 2x48 brass jacks, stereo-pitch centre-space, black

Description

Product resources

MOSSES AND MITCHELL BANTAM JACKFIELDS

One or two-row jackfields, 40 or 48 4.4mm bantam type jacks per row in 1U frame, standard equal spacing or ‘stereo paired’ spacing, both with two blocks of 20/24 connectors and “centre divide”. 2 row 48 jack version is also available in “continuous” version, with no centre divide. Front panel aluminium, straight grained and clear or black anodised. Complete with lacing bar and snap-on cover designation strips.

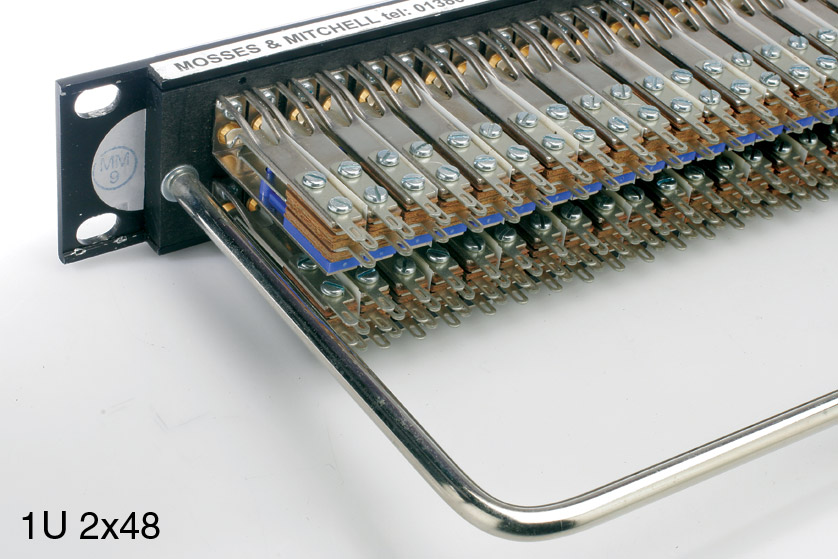

Fitted with Mosses & Mitchell 5 point closed frame palladium contact jacks, with either brass or nickel plated sleeve ring.

Autocad templates for printing designation strips are available for download from the Tech Zone at www.canford.co.uk or by contacting Technical Support.

Recess rack-mounting brackets are available to recess panels within the rack and an optional tamper-proof cover-plate can be fitted and removed without disturbing the panel mountings, see “Recess rack-mounting brackets and anti-tamper covers”.

Application note:

Where a cover-plate is required to protect cross patching with patchcords, recess brackets with a depth of 100mm or greater are recommended.
