20-035 EMO E580 DI BOX Passive, 8 channel, with earth lift, 1U rackmount

each (ex. VAT) 1+
Price £ 685.00
EMO E580 DI BOX Passive, 8 channel, with earth lift, 1U rackmount
EMO E580 DI BOX Passive, 8 channel, with earth lift, 1U rackmountEMO E580 DI BOX Passive, 8 channel, with earth lift, 1U rackmountEMO E580 DI BOX Passive, 8 channel, with earth lift, 1U rackmountEMO E580 DI BOX Passive, 8 channel, with earth lift, 1U rackmount

Description

EMO PASSIVE DIRECT INJECTION BOXES

High quality passive direct injection boxes with multipurpose inputs and output. The units are suitable for both broadcast, studio and public address work. Available in single and dual channel versions. Also in 19" rackmounting multichannel formats.

Multipurpose – works from pickup, amp, speaker outputs and even 100 volt line etc. Output fully floating, nom. 10mV. Suitable for mixer input impedances 200 ohms upwards. Earth lift switch on E520, E525 and E545 minimises hum problems. Safety-isolated to 1kV (standard types). Robust, housed in strong diecast metal box, with durable epoxy coating. Dimensions: 110 × 60 × 35mm (single unit) – 120 × 95 × 36mm (dual unit).

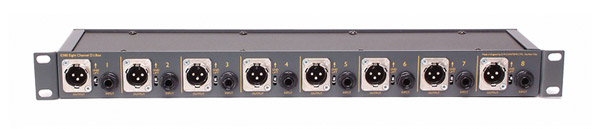

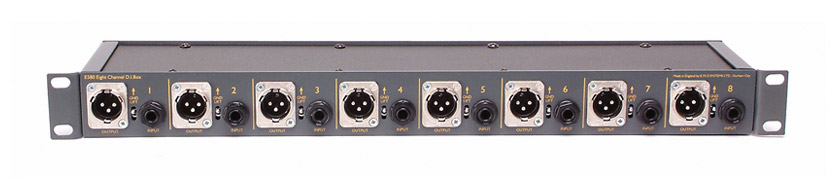

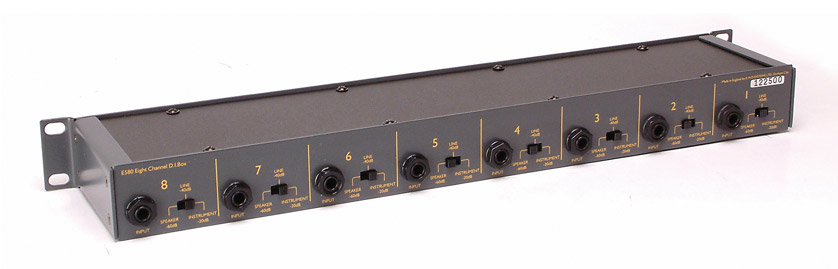

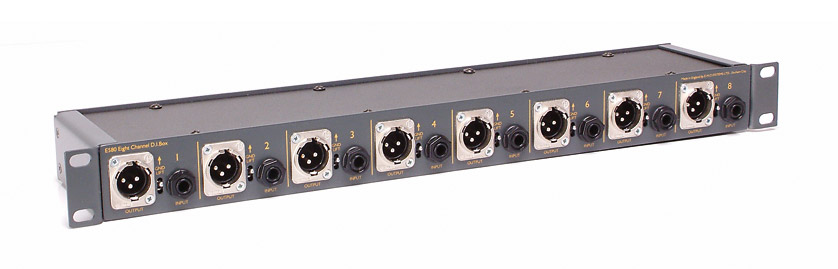

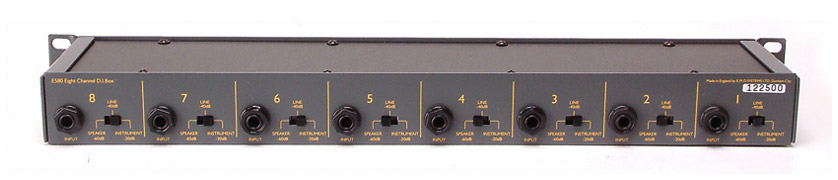

The E580 offers eight channels of passive DI box in a 1U rack mounting format for applications where rack space is limited and multichannel operation is required. Reversible rack ears and internal headers allow the user to be flexible in their choice of operating mode and mounting position. The unit has the same technical specifications as the other EMO DI boxes. Dimensions: 482mm (19") × 44mm (1U) × 100mm.

Technical Specification:

InputImpedance (ohms)Max. inputAttenuation
Instrument100k1v20dB
Amp-slave8k10v40dB
Speaker100k100v60dB
Frequency response:20Hz to 20kHz ±0.5dB
