Description
CHIAYO PORTABLE WIRELESS SOUND SYSTEMS - UHF

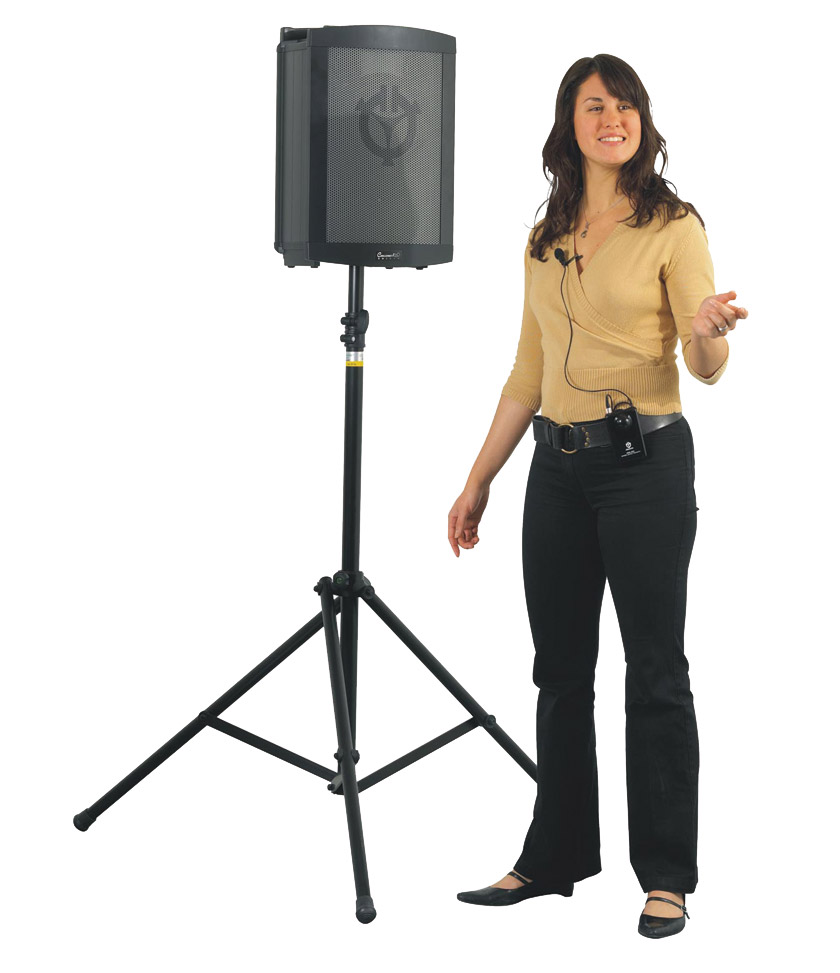

An all-in-one multi-functional, multi-purpose, portable sound system designed for use both indoors and outdoors. It can be powered from the internal battery or an external AC or DC supply, and may be configured to provide wired and wireless microphones and CD facilities. The moulded enclosure has a 50 watt amplifier and speaker, integrated wheels and retractable handle for easy transportation and a socket for stand mounting. When used in wet surroundings, such as beside swimming pools, the battery powering and wire-free operation offer clear advantages in terms of safety.
Challenger 1004

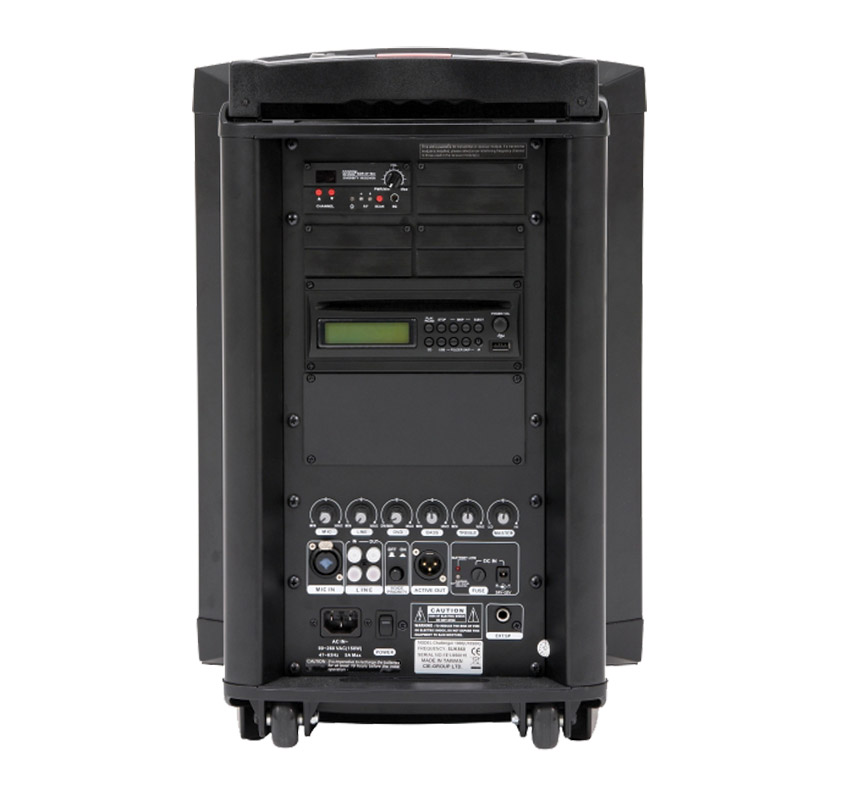

Features two microphone inputs using combination XLR and jack sockets, stereo line in and out RCA (phono) sockets, balanced output to drive further slave units (XLR) and speaker outlets for an extra 8 ohm extension speaker. Each of these inputs has a volume control; master volume and tone controls affect the overall mix. A further volume control is used on the inbuilt programmable CD player. It also has an integral 16-channel UHF diversity radiomic receiver, which has its own volume control. A second receiver may be added as a user-fitted option.
Guide coverage: Up to 800 metres sq. Radiomic frequency: Channels 1-12; 845.900 - 861.550 MHz, licence required; channels 13 - 16 863.100 - 864.900 MHz, deregulated, no licence required. Power: 50W RMS. Frequency response: 50Hz - 20kHz +/- 3dB. Power source: 230V AC (IEC inlet), 24-32V DC (co-axial connector) or internal batteries offering up to six hours music, 10 hours speech. Dimensions: 350 x 500 x 300 (w x h x d) mm. Weight: 15kg.
Included accessories: AC cordset.
Optional accessories: C1000 companion speaker; a 50W loudspeaker in a matching enclosure, complete with wheels, retractable handle and stand-mounting socket. Connection cable included. DC40 PVC dust cover for C1000 models. SQ-5016(AT) hand-held radiomic transmitter with Audio Technica dynamic capsule. SM-5016(S) beltpack transmitter, miniature XLR connector, requires microphone. Both transmitters require 2 x AA batteries. SDR6116M radiomic receiver for user fitting, adds facilities for a second radiomic. MC-15X tie-clip, MC-76X headworn microphones for use with SM-5016(S).
