60-1855ENH BELDEN 1855ENH CABLE Green

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.40 1.12 1.08 1.04 0.95
BELDEN 1855ENH CABLE Green

Description

Product resources

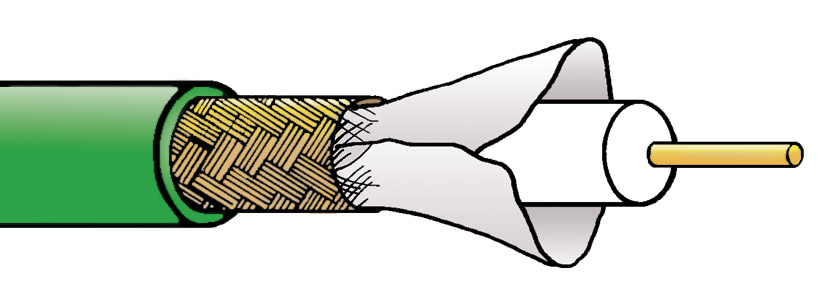

BELDEN 1855ENH - HDTV AND SERIAL DIGITAL VIDEO CABLE Low fire hazard

Coaxial 75 ohm cable specifically for serial digital video signals, with low-smoke, zero-halogen material outer jacket.

Technical Specifications:

Cable size group:X
Inner conductor:0.6mm tinned copper
Dielectric:Foam polyethylene, 2.80mm O.D.
Screen 1:Aluminium/polyester/aluminium tape, longitudinally applied
Screen 2:Tinned copper braid, O.D. 3.4mm
Construction:Coaxial cable
Jacket:Low smoke zero halogen material, various colours, O.D. 4.45mm
Impedance:75 +/- 1%
Capacitance:53pF/m nominal
Attenuation:MHz71.513527036054075015003000
dB/100m8.611.516.118.622.826.938.756.1
Weight:1.4kg/100m
Reel length:500m
Cut lengths:Available in any multiple of 1 metre
