EMO CABLE TESTERS
The EMO cable testers are designed for use in portable and bench mounted applications, including the assembly and testing of cables.
All models also have the flexibility to check continuity, open circuit and cross connection in most other situations.
| Dimensions: |
120 ×95 ×40mm. Weight: 0.4kg. |
| Battery (not supplied): |
9V PP3 size |

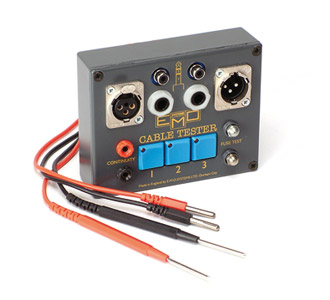

E445
Tests 3 pin XLR leads, 2 and 3-pole A-gauge jack leads, RCA (phono) leads, most commonly used fuses, and other continuity paths using test leads supplied. Continuity indication by buzzer.
As E445 but B-gauge jacks.
Similar to E445 but without jack and RCA (phono) testing facilities. Includes special XLR remote unit to enable testing of cables where it is not possible to bring both ends to the tester.
DMX Adapter
DMX protocol is a standard means of controlling lighting dimmers remotely from a control desk. The standard uses a three wire connection using 5-pin XLR type connectors. These adapters allow the E445, E446 and E447 table testers to be used to test the primary circuit of such cables. Two adapters are required for each cable tester. Adapters are priced and sold in pairs.
‘EMO’ is a registered trademark of Canford Audio Limited.
