STUDIO SYSTEMS ELECTRONICS MEDIALINK 500
The Medialink 500 series provides a cost-effective method of transmitting video and audio signals from point to point via a single twisted-pair Cat. 5 (Category 5) cable. This connects on each unit via a standard RJ-45 socket. Broadcast quality signal fidelity is maintained at distances of up to 350 metres. The four different models in the series offer options for full-duplex video and audio (balanced or unbalanced), and RGB/YPbPr or composite video signals. The video distribution is system independent and therefore works with PAL, NTSC or SECAM.

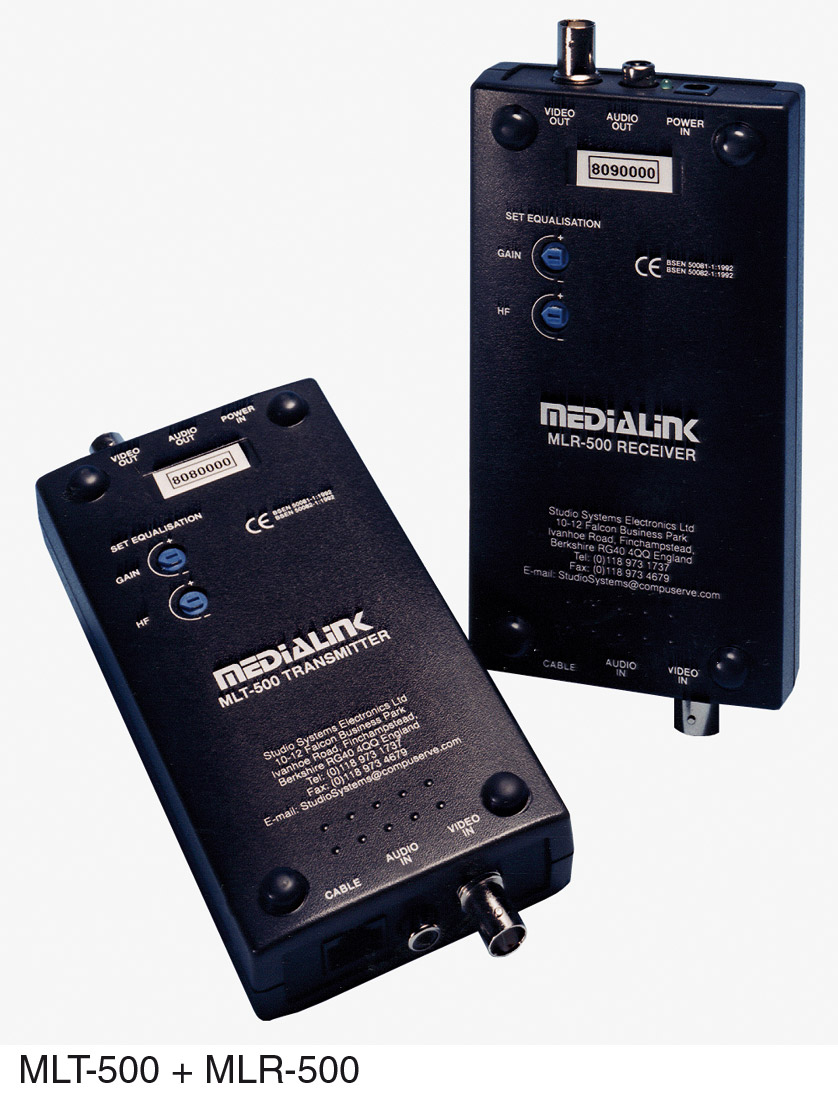

MLT-500/MLR-500
Supports audio and composite video in both directions using a single Cat. 5 twisted-pair cable. The audio interface is unbalanced on RCA (phono), video on BNC.
MLT-500BE/MLR-500BE
Supports balanced audio and composite video in both directions using a single Cat. 5 twisted-pair cable. The MLT-500BE /MLR-500BE are the same as the MLT-500/MLR-500 except that the audio interface is electronically balanced on XLR connectors.

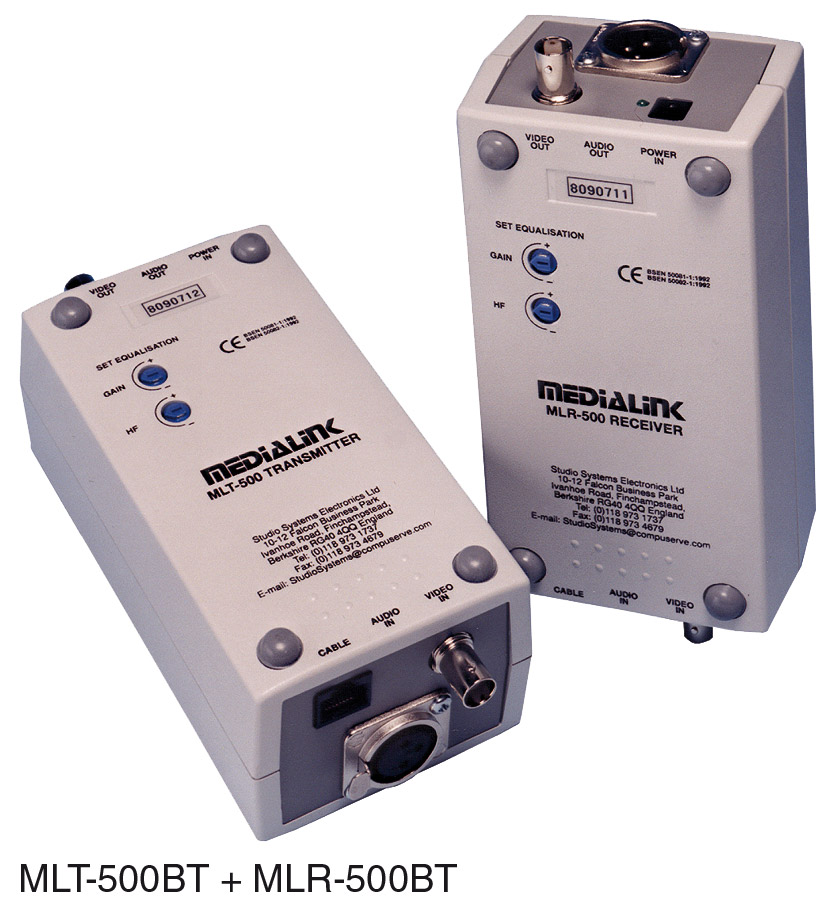

MLT-500BT/MLR-500BT
Supports balanced audio and composite video in both directions using a single Cat. 5 twisted-pair cable. The MLT-500BT /MLR-500BT are the same as the MLT-500/MLR-500 except that the audio interface is transformer balanced on XLR connectors.
MLT-502/MLR-502
This system transmits up to 3 video signals in a single direction over a single Cat. 5 twisted-pair cable. These units are designed for composite video signals but can also be used to transmit 3 component signals (without audio). An additional feature is that power is not required at both ends for Cat. 5 cable lengths of up to 100 metres. For Cat. 5 cable lengths over 100 metres, DC power must be provided at both ends.
Technical Specification:
Video
|
System compatibility: | PAL, NTSC, SECAM, R,G,B, Y,Pb,Pr, or Y/C. |
|
Signal level: | 1V p-p into 75 |
|
Input/output impedance: | 75 , BNC connector |
|
Frequency response: | Within ± 0.5dB to 5.5MHz (up to 350m of Cat. 5 cable) |
|
Bandwidth: | -3dB at 8 MHZ (up to 350m of Cat. 5 cable) |
|
Differential gain: | <0.2% at 4.43MHz |
|
Differential phase: | <0.4 degrees at 4.43MHz |
|
Signal to Noise ratio: | Better than 58dB (Luminance Weighting) |
|
| Better than 69dB (PAL System I Colour weighting) |
Audio
|
System: | Analogue base-band | |
|
Input signal level: | 5V p-p maximum | |
|
Input: | MLT/R-500 | 10k , RCA (phono) |
|
| MLT/R-500BE | 10k , XLR |
|
| MLT/R-500BT | 2k4 , XLR |
|
Output: | MLT/R-500 | 100 , RCA (phono) |
|
| MLT/R-500BE | 100 , XLR |
|
| MLT/R-500BT | 600 , XLR |
|
Bandwidth: | MLT/R-500 and MLT/R-500BE | -3dB 10kHz to 100kHz |
|
| MLT/R-500BT | -3dB 30kHz to 35kHz |
|
Signal to Noise ratio: | Better than 80dB (10kHz LPF) | |
General
|
Controls/indications: | Video gain, video HF equalisation, power |
|
Powering: | +12 to 16VDC at approx 140mA per end, 2.5mm circular (centre positive) |
|
Dimensions: | 175(l) × 80(w) × 30(h)mm (MLT/R-500 and MLT/R502) |
|
| 175(l) × 80(w) × 60(h)mm (MLT/R-500BE and MLT/R500BT) |
|
Weight: | 220g (MLT/R-500) |
|
| 320g (MLT/R-500BE) |
|
| 430g (MLT/R-500BT) |
|
| 230g (MLT/R-502) |
