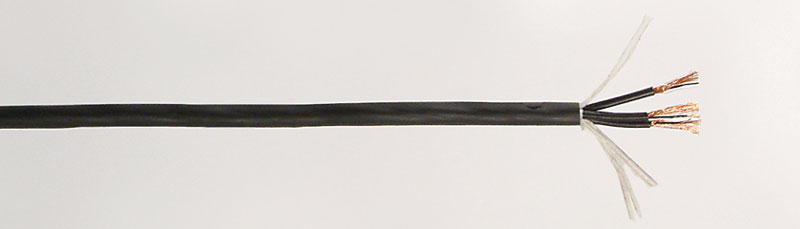

Extremely small diameter multipair cable based on MST miniature screened twin cable. Cores exactly to the MST specification are twisted together and jacketed overall in tough and resilient polyurethane to give added protection to the fine wire inner cores. MSJ3 is specifically intended for use with M-S and other stereo microphones, but is suitable for a range of other applications requiring a small diameter highly flexible screened 3-pair cable, including ENG.
Technical Specification:
|
Conductors: | 14/0.06mm (0.04mm²) plain copper wire, wound around Kevlar filaments |
|
Insulation: | Soft PVC, OD 0.6mm, white, black |
|
Lay-up: | 2 cores twisted, 15mm lay length |
|
Screen: | 50/0.05mm plain copper wire, braided |
|
Pair jacket: | Soft PVC, OD 2.0mm ±0.1mm, black |
|
Outer sheath: | Polyurethane, OD 5.6mm ±0.1mm, matt black |
|
Conductor resistance: | 46 ohms/100m |
|
Capacitance: | 120pF/100m |
|
Weight: | 2.5kg/100m approx |
|
Reel length: | 500 metres |
|
Cut lengths: | Available in any multiple of 1 metre |
