Description
DRAKA CATEGORY 5E - DIGITAL AUDIO AND DATA SOLID CONDUCTOR MULTIPAIR CABLES

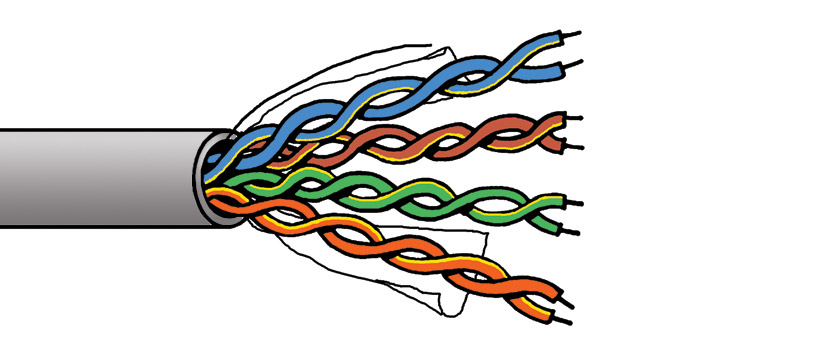

F/UTP Foil screened twisted pair
Computer industry 100 ohm standard design, suitable for both AES/EBU digital audio and computer LAN traffic up to 100 Mbit/s.
Technical Specification:
|
Conductors: | 1/0.51mm (24 AWG) plain copper |
|
Insulation: | Solid polyethylene |
|
Lay-up: | Two insulated conductors twisted together, pairs twisted together. |
|
Screen: | aluminium/polyester tape (aluminium side in) |
|
Drain wire: | 1/0.4mm tinned copper wire, laid up with cores |
|
Overall jacket: | PVC, grey, O.D. 6.0mm |
|
Minimum bending radius: | 60mm |
|
Impedance: | 100 ± 15 ohms |
|
Conductor resistance: | 9.4 ohms/100m |
|
Velocity ratio: | 76% |
|
Attenuation: | 1.9dB/100m (1MHz) |
|
| 6.0dB/100m (10MHz) |
|
| 19.8dB/100m (100MHz) |
|
Near end crosstalk: | 71dB (1MHz) |
|
| 56dB (10MHz) |
|
| 41dB (100MHz) |
|
Weight: | 4.0kg/100m |
|

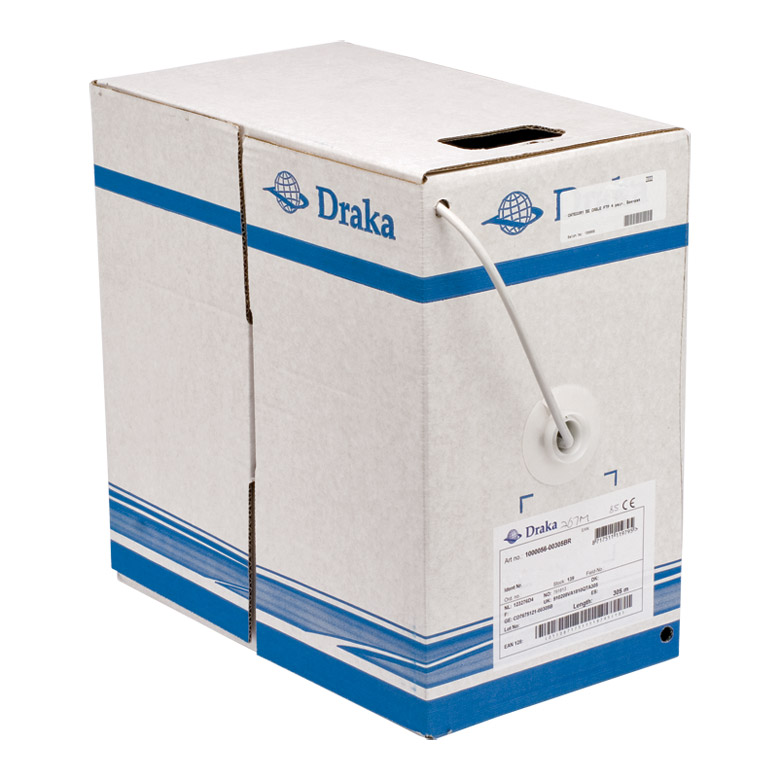

Reel length: | 500 metre reels, or box-paks of 305 metres |
|
Cut lengths: | Available in any multiple of 1 metre |

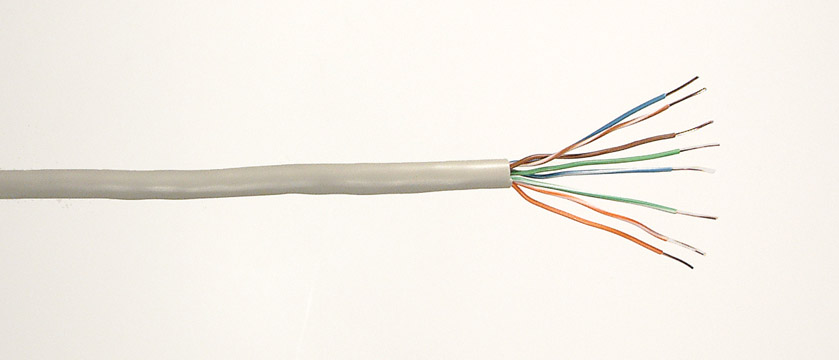

U/UTP Unscreened twisted pair
As F/UTP, but without foil screen and no drainwire.
Technical Specification:
|
As F/UTP except: | |
|
Screen: | None |
|
Overall jacket: | PVC, grey, OD 5.5mm |
|
Weight: | 3.4kg/100m |
|
Reel length: | Box-paks of 305 metres |
Note:
The standard description convention for Category cables is as follows -
|
U/UTP | Unscreened overall, unscreened twisted pairs (often also called UTP) |
|
F/UTP | Foil screened overall, unscreened twisted pairs (often also called FTP) |
|
U/FTP | Unscreened overall, foil screened twisted pairs |
|
F/FTP | Foil screened overall, foil screened twisted pairs |
|
F/FTP | Foil screened overall, foil screened twisted pairs |
|
S/FTP | Braid screened overall, foil screened twisted pairs |
