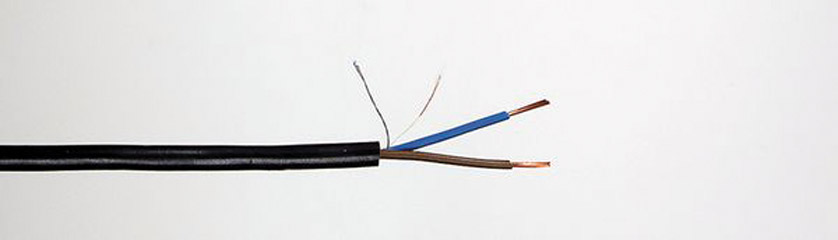

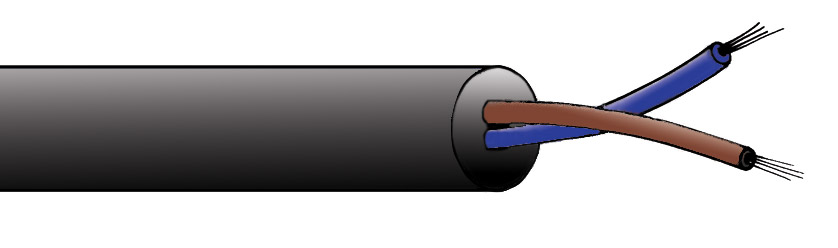

33-210 FLEXIBLE MAINS 2 core 0.5 sq.mm, Black PVC

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 0.34 0.27 0.26 0.26 0.25
FLEXIBLE MAINS 2 core 0.5 sq.mm, Black PVC
FLEXIBLE MAINS 2 core 0.5 sq.mm, Black PVCFLEXIBLE MAINS 2 core 0.5 sq.mm, Black PVC

Description

FLEXIBLE AC MAINS POWER CABLES

A range of flexible mains cables with stranded conductors, all with either PVC, Arctic PVC or TRS (heat resisting rubber) jackets. Arctic grade PVC remains flexible at temperatures down to –20° C; at normal temperatures cables are very limp and flexible, but note that Arctic PVC jacketed cables are not designed for use outdoors with 230V supplies (it is only rated for 110V; BS7909 makes this definition). Core colours are brown and blue, plus green/yellow in 3-core types. Most types conform to BS6500:1994 and meet relevant European specifications.

Stock No. Current Conductors Jacket Jacket Jacket Weight
code of cores rating material colour OD (kg/100m)
33-210 2 3A 16/0.2mm PVC Black 5.2mm 2.9kg
33-220 2 6A 24/0.2mm PVC Black 6.1mm 5.5kg
33-240 2 15A 30/0.25mm Arctic PVC Black 8.0mm 9.5kg
33-310 3 3A 16/0.2mm PVC Black 6.0mm 6.0kg
33-320 3 6A 24/0.2mm Arctic PVC Black 6.6mm 7.2kg
33-324 3 6A 24/0.2mm Arctic PVC Orange 6.6mm 7.4kg
33-360 3 10A 32/0.2mm PVC Black 8.4mm 8.5kg
33-363 3 10A 32/0.2mm Arctic PVC Orange 8.4mm 8.5kg
33-340 3 15A 30/0.25mm Arctic PVC Black 8.5mm 12.0kg
33-341 3 15A 30/0.25mm TRS Black 8.5mm 15.7kg
33-344 3 15A 30/0.25mm Arctic PVC Orange 8.5mm 10.4kg
33-354 3 20A 50/0.25mm Arctic PVC Orange 10.8mm 18.0kg
33-351 3 20A 50/0.25mm TRS Black 13.0mm 21.0kg
33-371 3 39A 84/0.3mm TRS Black 17.0mm 40.7kg

All types on 100 metre reels. Cut lengths also supplied in any multiple of 1 metre.
