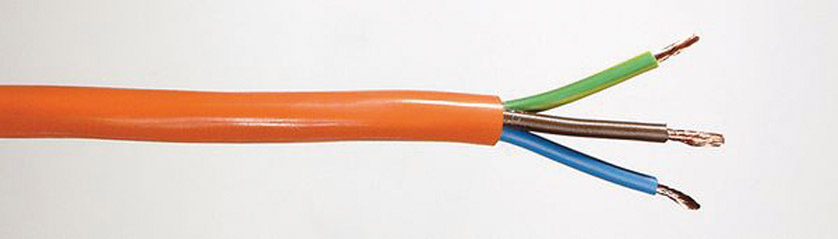

33-354 FLEXIBLE MAINS 3 core 2.5 sq.mm, Orange Arctic PVC

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.57 1.26 1.23 1.19 1.15
FLEXIBLE MAINS 3 core 2.5 sq.mm, Orange Arctic PVC

Image may be provided for illustrative purposes only, please consult the product description for exact details.

FLEXIBLE MAINS 3 core 2.5 sq.mm, Orange Arctic PVCFLEXIBLE MAINS 3 core 2.5 sq.mm, Orange Arctic PVC

Description

FLEXIBLE AC MAINS POWER CABLES

A range of flexible mains cables with stranded conductors, all with either PVC, Arctic PVC or TRS (heat resisting rubber) jackets. Arctic grade PVC remains flexible at temperatures down to –20° C; at normal temperatures cables are very limp and flexible, but note that Arctic PVC jacketed cables are not designed for use outdoors with 230V supplies (it is only rated for 110V; BS7909 makes this definition). Core colours are brown and blue, plus green/yellow in 3-core types. Most types conform to BS6500:1994 and meet relevant European specifications.

StockNo.CurrentConductorsJacketJacketJacketWeight
codeof coresratingmaterialcolourOD(kg/100m)

33-21023A16/0.2mmPVCBlack5.2mm2.9kg
33-22026A24/0.2mmPVCBlack6.1mm5.5kg
33-240215A30/0.25mmArctic PVCBlack8.0mm9.5kg
33-31033A16/0.2mmPVCBlack6.0mm6.0kg
33-32036A24/0.2mmArctic PVCBlack6.6mm7.2kg
33-32436A24/0.2mmArctic PVCOrange6.6mm7.4kg
33-360310A32/0.2mmPVCBlack8.4mm8.5kg
33-363310A32/0.2mmArctic PVCOrange8.4mm8.5kg
33-333313A40/0.2mmArctic PVCOrange8.3mm11.0kg
33-340315A30/0.25mmArctic PVCBlack8.5mm12.0kg
33-341315A30/0.25mmTRSBlack8.5mm15.7kg
33-344315A30/0.25mmArctic PVCOrange8.5mm10.4kg
33-354320A50/0.25mmArctic PVCOrange10.8mm18.0kg
33-351320A50/0.25mmTRSBlack13.0mm21.0kg
33-371339A84/0.3mmTRSBlack17.0mm40.7kg

All types on 100 metre reels. Cut lengths also supplied in any multiple of 1 metre.
