Description

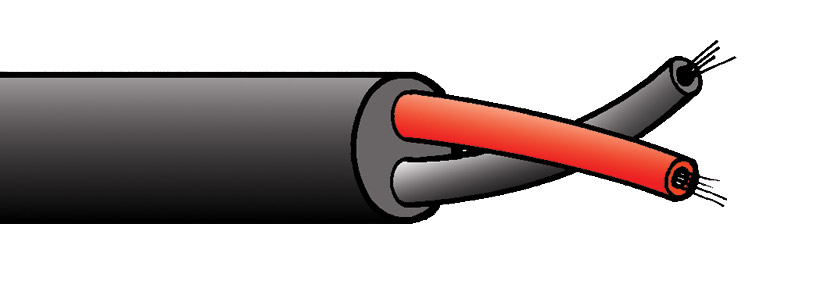

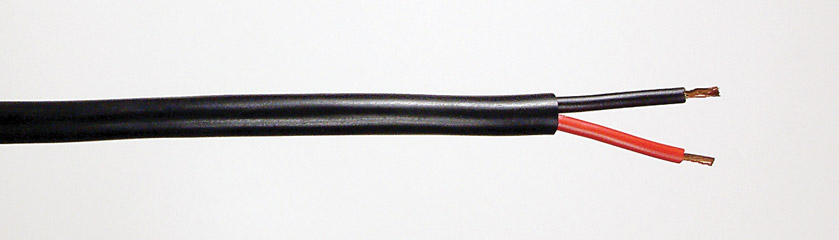

GPS - GENERAL PURPOSE LOUDSPEAKER CABLE
General purpose loudspeaker cables similar in construction to 2-core and 4-core mains cables, but manufactured specifically for use as loudspeaker feeds. Cores are twisted, coloured red and black (GPS) or red, black, violet and grey (GPS4), and the cable is marked "Loudspeaker cable" to clearly distinguish it from mains cables for safety reasons.
Technical Specification:
|
Conductors: | 24/0.2mm (0.75mm²) or 30/0.25mm (1.5mm²) plain copper wire |
|
Insulation: | PVC, red, black (GPS) or red, black, violet, grey (GPS4) |
|
Lay-up: | Cores twisted together, lay length approx 100mm |
|
Overall jacket: | PVC, black, 6.2mm (GPS 0.75), 7.9mm (GPS 1.5), 7.3mm (GPS4 0.75) |
|
Weight: | 5.6kg/100m (GPS 0.75), 9.5kg/100m (GPS 1.5), 9.5kg/100m (GPS4 0.75) |
|
Reel lengths: | 100m and 500m |
|
Cut lengths: | Available in any multiple of 1 metre |
