Description
RIP-TIE CABLE MANAGEMENT
A range of cable management aids using the well established ‘hook and loop’ materials.
Rip-Tie CableWrap
A high quality re-usable cable wrap, using a section of hook material stitched to a section of loop with a fabric pull tab. The loop material is punched so that the tie can be fixed to the cable using a nylon cable tie (supplied). The loop material forms an effective strain relief against cable damage. The fabric pull tab allows for easy opening with a good grip. Available in 4 sizes.
|
Size | Width | Length (approx.) | Max. bundle diameter (approx.) |
|---|
|
H3 | 25mm | 75mm | 19mm |
|
H6 | 25mm | 150mm | 38mm |
|
H9 | 25mm | 225mm | 57mm |
|
H14 | 25mm | 350mm | 95mm |
Rip-Tie CableCatch
Used to organize cables against a surface, behind equipment consoles, racks or desks. The CableCatch consists of hook and loop materials facing each other with a strong self-adhesive fixed to the back of the loop material. The hook material has a nylon fabric pull tab for easy release. CableCatches are well-suited for location and OB work, where CableCatches may be fixed to equipment for connector strain relief and neatness, or for studios which use a lot of hired in equipment that is changed out often. Available in 3 sizes.
|
Size | Width | Length (approx.) | Max. bundle diameter (approx.) |
|---|
|
C2 | 25mm | 50mm | 19mm |
|
C4 | 25mm | 100mm | 38mm |
|
C8 | 25mm | 200mm | 82mm |
A custom pull-tab printing service is available for orders over 1,000 pieces (mixed types). Please ask sales staff for details. Standard Rip-Ties are available in a range of other colours to special order, minimum quantity 100 pieces per colour.
Rip-Tie Lite
Designed for applications where industrial strength or permanently fixed fastenings are not required, Rip-Tie Lite are a one piece double sided hook and loop fastener 12mm wide, with a slide-through eyelet to lock the fastener to the cable without the need of a nylon cable tie. When coiled, the remaining cable is held by wrapping the main length over itself in the usual way.
|
Size | Length (approx.) | Max. bundle diameter (approx.) |
|---|
|
Y5 | 125mm | 25mm |
|
Y8 | 200mm | 44mm |
|
Y12 | 300mm | 70mm |
Rip-Tie WrapStrap
A low cost solution where the extra benefit of pull tabs, screw mount holes, etc. are not required, these ties are simply a length of flexible double sided strips 12 mm wide, ideal for semi-permanent fixing. Available in pre-cut lengths of 300mm.

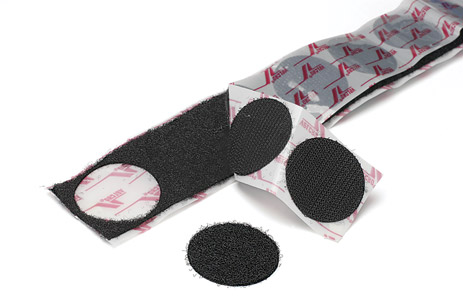

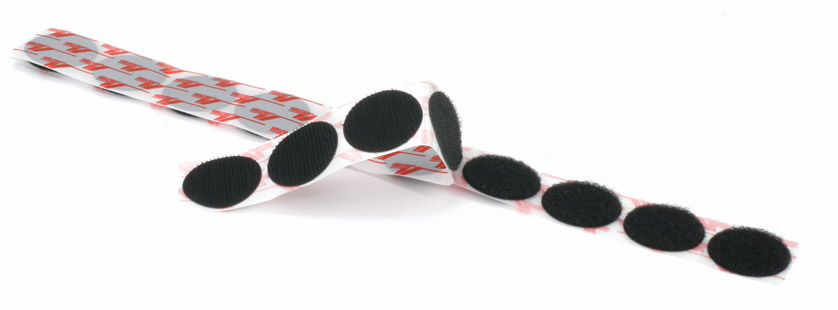

Rip-Tie RipSpots
Where semi-permanent fixing of equipment is required, ‘RipSpots’ are ideal. These are simply self-adhesive circular spots of hook and loop material, which may be used to secure equipment that must be dismantled for transportation, or stored for security. Also a good way to fix control panels in studios which may need to be removed for servicing at short notice. diameter 35mm, supplied in packs of 10 pairs.
Rip-Tie CinchStrap-EG
Used for similar purposes to the CableCatch, the CinchStrap fixes more securely to rough surfaces and has a stronger closure mechanism to take heavier loads. The strap is secured to a surface using a suitable screw or other fastener through a metal eyelet (6.35mm clearance), allowing the strap to hang below. The cable bundle is placed against the strap. The end of the strap, which has a length of hook material is brought underneath the bundle, up and through a buckle, then down to lock on the loop material of the strap. Strap is 25mm wide, maximum bundle diameter 50mm, sold in packs of two.
