Description
CABLE BINDING SLEEVES
Neoprene

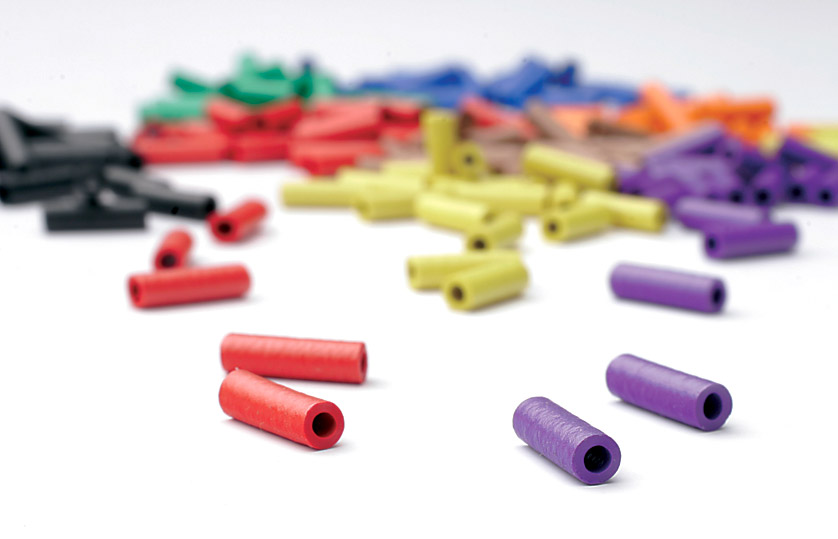

Neoprene cable binding sleeves in a range of sizes and colours. Unlike Hellerman sleeves, these are pre-lubricated, so do not usually need additional lubricant. Temperature range –30°C to +90°C (+110°C short duration). Easily expand to at least 75% above bore size, breaking point substantially larger. Priced and sold in packs.
|
Size | Internal | Wall | Sleeve |
|---|
|
| diameter (mm) | thickness (mm) | length (mm) |
|---|
|
12 | 1.25 | 0.5 | 12.5 |
|
20 | 2.0 | 0.75 | 12.5 |
|
30 | 3.0 | 0.6 | 25.0 |
|
40 | 4.0 | 1.2 | 25.0 |
|
50 | 5.0 | 0.7 | 25.0 |
|
75 | 7.5 | 0.8 | 25.0 |
|
100 | 10.0 | 1.0 | 25.0 |
|
|
