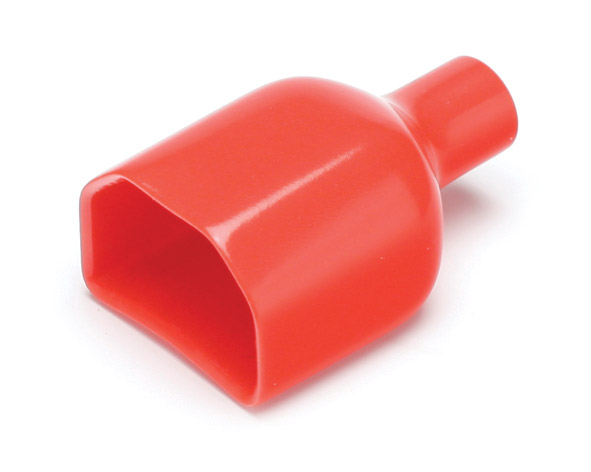

42-159 CANFORD REAR INSULATING COVER For IEC AC mains panel connector

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 0.60 0.57 0.55 0.52
CANFORD REAR INSULATING COVER For IEC AC mains panel connector

Description

BULGIN IEC (CEE22) AC MAINS POWER CONNECTORS

Cable types

Rewireable IEC mains connectors, with good retention in sockets. Female (mains outlet) connectors available in standard 10 amp version (uprated from 6 amp) without keyway, and also 10 amp “hot condition” version with keyway. Male (mains inlet) connector 10 amp rated, shrouded pins, without keyway.

Panel types

42-151:Male (mains inlet) type, panel cutout 27.4 × 19.8mm, mounting hole centres 40.00mm. Moulded PVC insulating cover also available, stock code 42-159.
42-156:Male (mains inlet) type, panel cutout 27.4 × 19.8mm, mounting hole centres 32.0mm (opposite faces to 42-151).
42-158:Male (mains inlet) type, panel cutout 27.4 × 19.8mm, snap-in fixing. Suitable for use with 1.5mm panel thickness.
42-150:Male (mains inlet) type with integral 20mm fuseholder, panel cutout 27.3 × 31.2mm, mounting hole centres 36.0mm. Fuse not supplied.
42-152:Female (mains outlet) type, panel cutout 32.3 × 24.8mm, mounting hole centres 40.0mm. Moulded PVC insulating cover also available, stock code 42-160.
42-157:Female (mains outlet) type, unshuttered, panel cutout 32.3 × 24.8mm, snap-in fixing. Suitable for use with 1.5mm panel thickness.
42-147:Female (mains outlet) type, shuttered, panel cutout 32.3 × 24.8mm, snap-in fixing. Suitable for use with 1.5mm panel thickness.

Stainless steel wire retaining clip kits, complete with mounting screws, are available for some panel connectors to prevent accidental removal of cable connectors.
