40-916 NEUTRIK XLR IDC ADAPTER For D-series 4 and 5 pin types

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 4.67 4.23 3.93 3.47
NEUTRIK XLR IDC ADAPTER For D-series 4 and 5 pin types

Description

NEUTRIK XLR PANEL CONNECTOR ADAPTERS - D series - Screw terminal and IDC

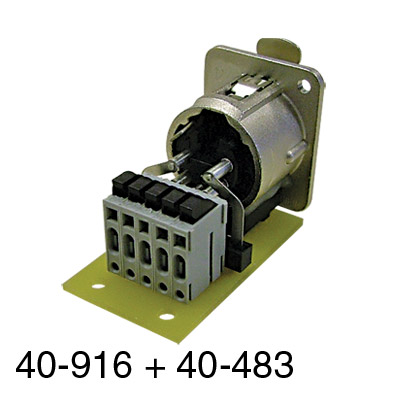

These PCB adapter modules allow 4 and 5-pin D-series XLR panel connectors to have screw-terminal or IDC connections. The IDC terminals, which accept wires with 0.50mm - 0.64mm conductors and insulation with a maximum diameter of 1.8mm, require no special tools to operate them.

Both adapters are suitable for use with either 4 or 5-pin connectors of the type NC*FDM3-H or NC*MDM3-H
