42-6045 RPP POWER DISTRIBUTION UNIT XH10E

each (ex. VAT) 1+ 10+
Price £ 58.58 54.92

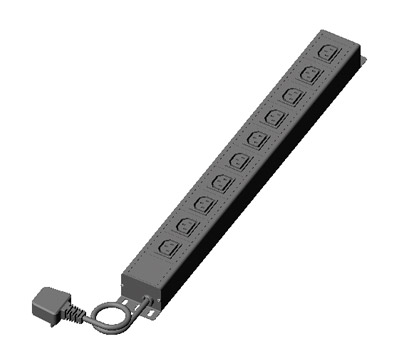

RPP POWER DISTRIBUTION UNIT XH10E

Description

RPP POWER DISTRIBUTION UNITS With IEC320 connectors

A range of UK-manufactured power distribution units for mounting in the rear of equipment racks, on workstations and consoles, or similar applications. All units have extruded aluminium housings, and are finished in black.

All types have 3-hole mounting flanges at each end, and attached 3 metre input cable with moulded IEC320 plug. Case width for all types is 55mm, depth 46mm.

They have modular, shuttered, IEC320 10A socket units mounted at 50mm pitch.

TypeNo. of socketsFormatOverall length (inc. brackets)

XH4E4Unswitched193mm
XH5E5Unswitched200mm
XH6E6Unswitched250mm
XH8E8Unswitched250mm
XH10E10Unswitched350mm
XH12E12Unswitched350mm
XH15E15Unswitched500mm
XH20E20Unswitched550mm

To special order, these units are available with neon indicators, neon switches (with side guards), filters, residual current breakers, input fuses and other input connectors – contact Tech Support for more details.
