Description
SURGEX POWER CONDITIONERS

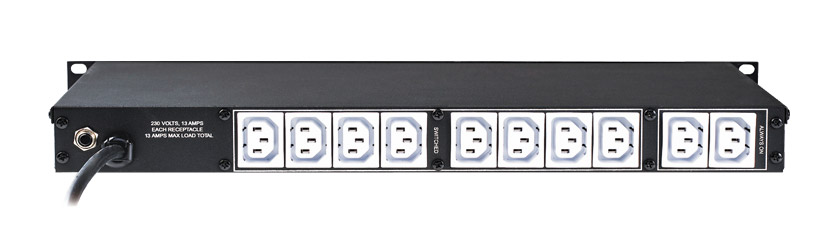

The Surgex range of surge eliminators and power conditioners offer protection against abnormal power circuit conditions. All units are housed in 1U rack-mounting enclosures and are rated at 13 amps total load. They have 8 rear switched and 2 rear and 1 front 'always on' IEC 10 amp outlets, plus a 2.75 metre captive inlet cable with UK 13A plug. Common and normal mode RFI/EMI filtering and surge protection to 6000V, a thermal circuit breaker for overload protection and a self-test function with front panel indicator are standard features on all models.
The manufacturer claims that no equipment protected by a Surgex unit has ever failed due to an AC surge related event. The standard warranty for Surgex equipment is 10 years.

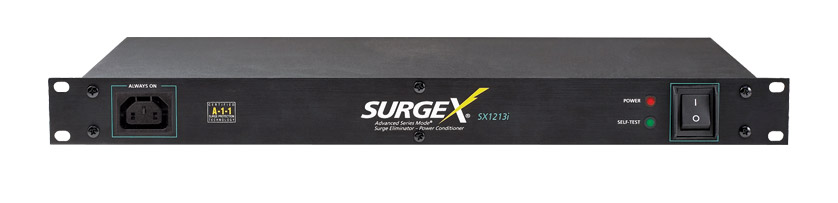

SX1213i
Base model in the series with the standard features. Weight 5.0kg.
SX1213RLi
This is as S1213i but also includes inrush current protection and 'catastrophic' over/under voltage shutdown. Two XLR 3-pin female outlets, with dimmer control, are provided on the front panel for connection of Littlite gooseneck lights.
SX1213RTi
This is as S1213i but also includes inrush current protection and 'catastrophic' over/under voltage shutdown. This version has remote turn-on capability for use in AC power distribution systems and can be interfaced with other units with similar features. Switched outlets can be controlled with an applied voltage (5-30VDC) or contact closure switch connected to the Phoenix connector on the back panel. This connector can also be used to cascade multiple units or provide status information to a central controller.
