31-059 CANFORD FST-LFH CABLE 1 pair, Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 0.40 0.32 0.32 0.31 0.30
CANFORD FST-LFH CABLE 1 pair, Black
CANFORD FST-LFH CABLE 1 pair, BlackCANFORD FST-LFH CABLE 1 pair, Black

Description

Product resources

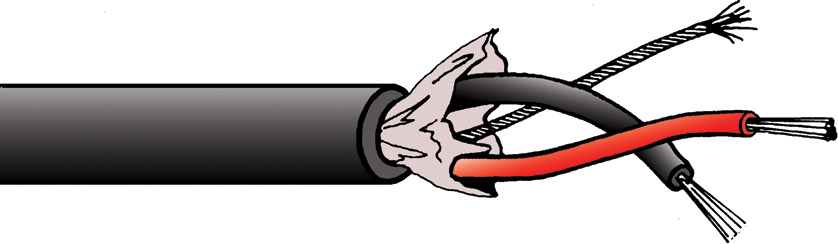

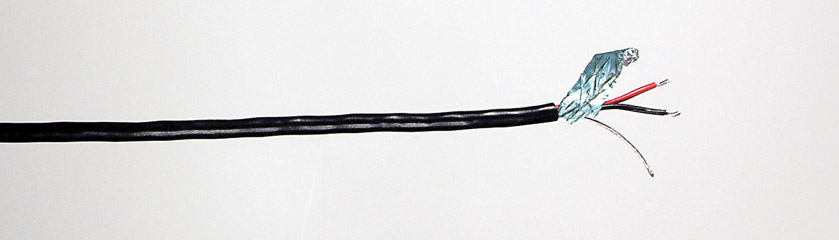

FST-LFH - FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE Low fire hazard

This new 2010 version of the Canford FST-LFH cable is designed to be suitable for both digital and analogue audio signals, the ‘universal’ solution for both installed and deployable applications. Wire insulation is polypropylene, which shrinks back minimally during soldering (considerably less than PVC or polyethylene). An impedance of 100 ohms has been proven to be suitable for AES/EBU digital audio signals as well as analogue microphone and line level signals.

Wiring specifications for many public buildings now call for LFH cables to be used in certain areas, notably in corridors etc. Under combustion circumstances, LFH cables have a significantly reduced smoke emission, and the gaseous products contain no toxic halogens.

FST-LFH is technically identical to standard FST, except that the PVC jacket is replaced by an LFH material.

Technical Specification:

As FST, except:
Jacket:Cream LFH compound, O.D. 4.0mm
Weight:1.64kg/100m
