31-966 CANFORD DFT CABLE 1 pair, Turquoise

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 0.67 0.53 0.51 0.49 0.45
CANFORD DFT CABLE 1 pair, Turquoise
CANFORD DFT CABLE 1 pair, TurquoiseCANFORD DFT CABLE 1 pair, Turquoise

Description

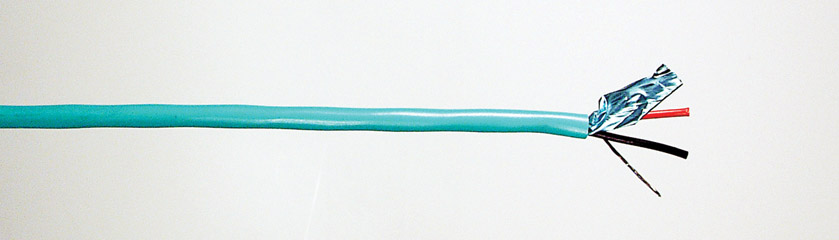

DFT - DIGITAL AUDIO FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE

FST has long been one of Canford’s best selling products – the perfect installation cable, with jacket + foil single stripping. DFT is the true 110 ohm version of FST, similar in most respects, but with differing insulation materials and lay-up to achieve the required characteristic impedance. As with FST, the foil is glued to the outer PVC jacket, so comes away cleanly during stripping. Where space is at a premium, Canford DKT-M offers reduced diameter as an alternative choice.

Technical Specification:

Conductor:7/0.2mm (0.22mm²) tinned copper wire
Insulation:Foamed polypropylene, OD 1.6mm, red, black
Screen:Bondable aluminium/polyester tape, with 7/0.2mm tinned copper drain wire
Jacket:PVC OD 4.4mm ±0.2mm
Impedance:110 ±10 ohms
Capacitance:39pF/m
Max. conductor resistance:85 ohms/km
Weight:2.0kg/100m
Reel length:500m
Cut lengths:Available in any multiple of 1 metre
