60-1904A BELDEN 1904A CABLE Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 11.07 8.86 8.52 8.19 7.53
CLEARANCE Price £ 4.00
Available only while stocks last. Prices may have been reduced to clear stock. The Clearance price is ONLY applicable to stock in our warehouse that we want to clear. If you order more than we have in stock, we will reduce your order to the quantity we have available at the Clearance price.
BELDEN 1904A CABLE Black

Description

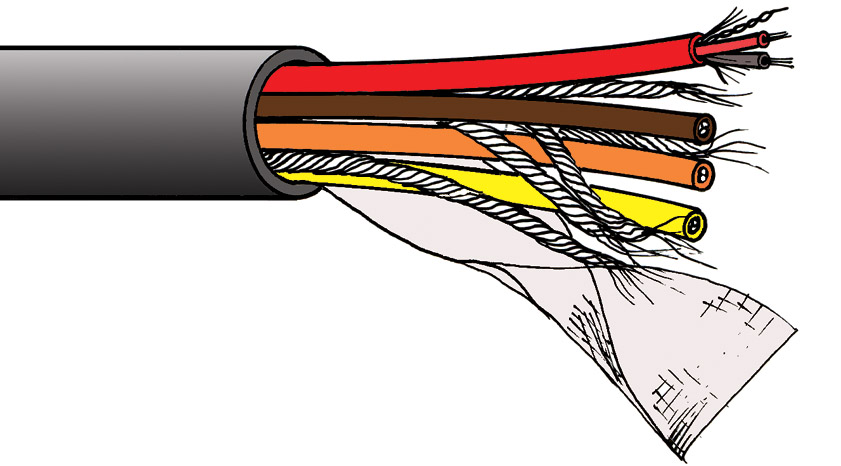

BELDEN 1904A - BRAID SCREENED STRANDED CONDUCTOR INDIVIDUALLY JACKETED MULTIPAIR CABLE

Extremely flexible, four pair multipair cable for analogue applications, with numbered and colour coded inner jackets. The screen is Belden’s patented “French Braid”, which is easy to terminate as it is not fully woven.

All other cables in the Belden 19 series (2, 6, 8, 12, 16, 24,and 32 pair) can be supplied to special order, usually on short lead times. These are normally available on 76, 153 and 305 metre reels (cut lengths not available).

Technical Specification:

Pair conductors:41/0.079mm (41/40AWG) (0.20mm sq.) (24AWG) plain copper
Pair insulation:Polyolefin, red, black
Drain wire:19/0.127mm tinned copper
Screen:Plain copper braid, 95% optical coverage
Pair jacket:PVC, 3.02mm OD, brown, red, orange, yellow
Overall lay-up:Each jacket numbered along its length
Outer sheath:PVC, 9.45mm OD, black
Impedance:110 ohms
Capacitance:85pF/m core to core, 155pF/m core to core+screen
Weight:10.26/100m
Reel length:305m
Cut lengths:Available in any multiple of 1 metre.
