39-004 CABLE-JOE

each (ex. VAT) 1+
Price £ 170.00
Special order product. Order cancellations may incur charges
CABLE-JOE

Description

CABLE JOE

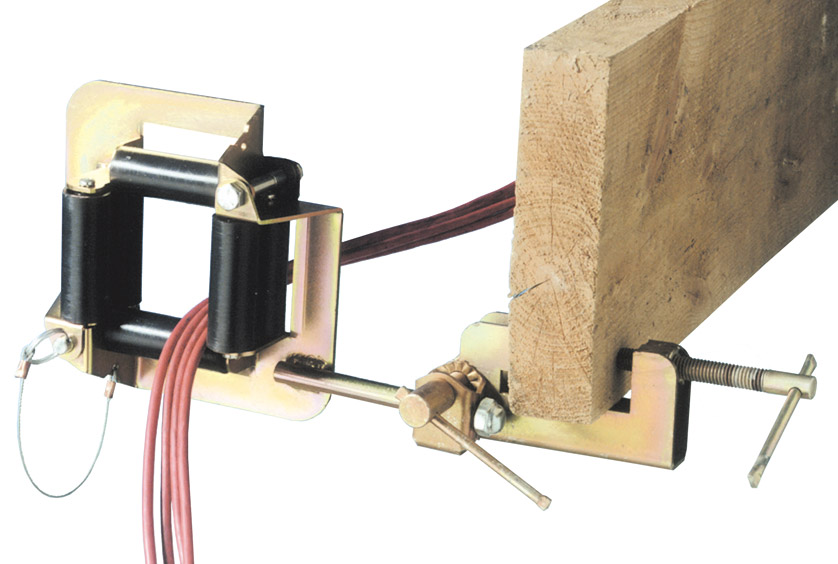

A “clamp-on” cable installer which guides cables round corners, for use in installation work or as an “extra-hand” when rigging on location.

Simple yet effective, the device is clamped to a cable tray, bench or handy rail, or may be positioned at the rear of an OB vehicle. Adjusted to a suitable angle, the roller bracket is opened by removal of a quick-release pin, and closed again surrounding the cable or multiple cables. Six nylon rollers guide the cable(s) to run smoothly through the frame, as they are pulled from a drum or along the ground.

Substantially constructed, using plated cold-rolled steel, Cable-Joe makes one-man cable- running possible in otherwise difficult circumstances, to save time and reduce damage.

Technical Specification:

Aperture between rollers:70mm
Roller diameter:26mm
Jaw capacity:58mm
Dimensions (nominal):200(w) × 85(d) × 400 (h)mm
Weight:1.95kg
