46-060 DIN RAIL TERMINAL End clamp for 35mm top hat rail

each (ex. VAT) 1+
Price £ 0.38
CLEARANCE Price £ 0.05
Available only while stocks last. Prices may have been reduced to clear stock. The Clearance price is ONLY applicable to stock in our warehouse that we want to clear. If you order more than we have in stock, we will reduce your order to the quantity we have available at the Clearance price.
DIN RAIL TERMINAL End clamp for 35mm top hat rail

Description

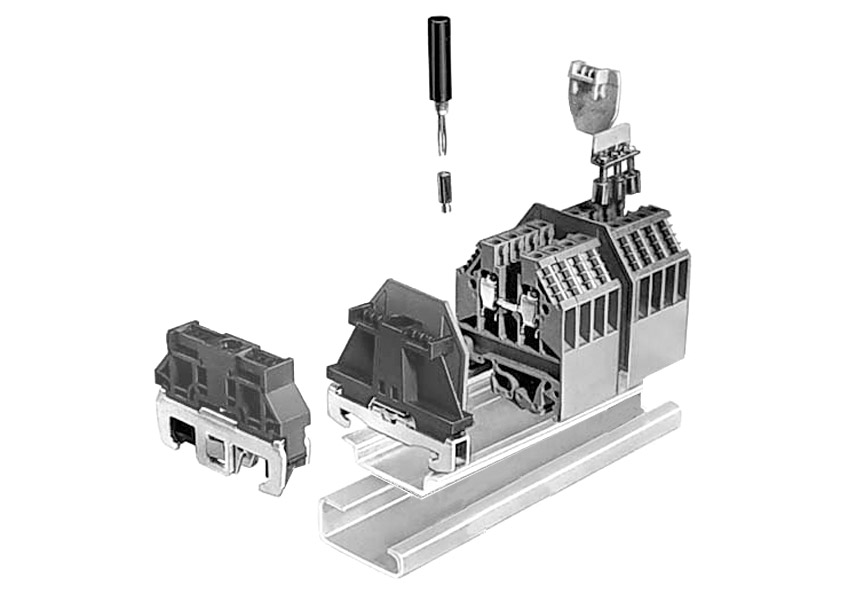

DIN RAIL TERMINALS

DIN-rail terminals are used widely for terminating wires and cables, especially installed loudspeaker cables. These feed-through terminals will fit both 35mm “Top-hat” or “U” rails and 32mm “G-rail”, and have a “yoke and screw” cable-clamp on each end, for positive termination with minimum preparation.

Accessories include end-clamps for Top-hat or G-rails, end section, partition isolator and jumper-bars. Other accessories and terminal formats, including fused and disconnect versions, are available to special order.

Technical Specification:

Type:WK 2.5mmWK 4mm
Stranded cable capacity:0.5-2.5 mm²0.5-4.0 mm²
Solid cable capacity:0.5-4.0 mm²0.5-6.0 mm²
Width:5mm6mm
Max voltage:750V750V
Max current:24A32A

Technical note:

If adjacent terminals are bridged by a jumper-bar, then a snap-in jumper-bar partition, end section or partition isolator must be placed at the end of the jumpered terminals.
