OPTOGATE MIC LIFT 2

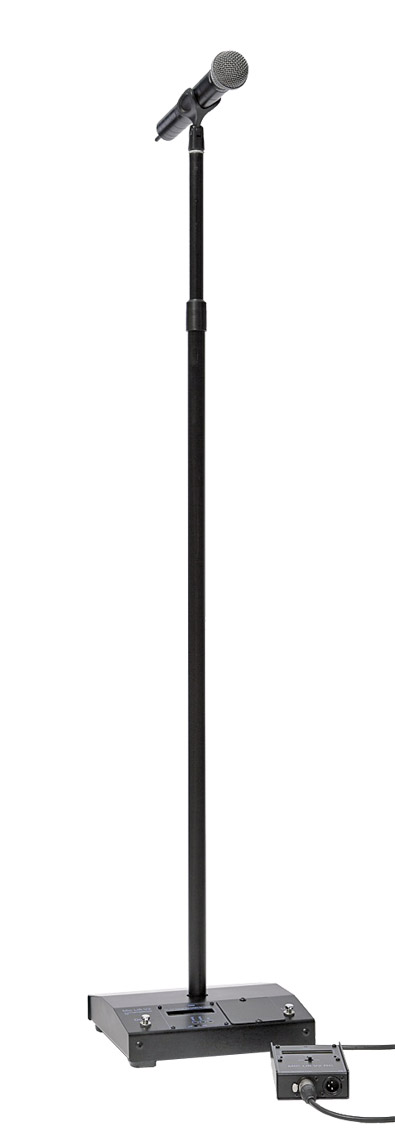

The Mic Lift 2 motorised microphone stand solves one of the most common problems in conference applications, that of getting the microphone at the optimum height for both acoustic performance and visual appearance. The motor and the main mechanical parts are all mounted in the base of a stand in order to keep the visible parts small and make the lift suitable for TV and other applications where smart and discreet solutions are required.

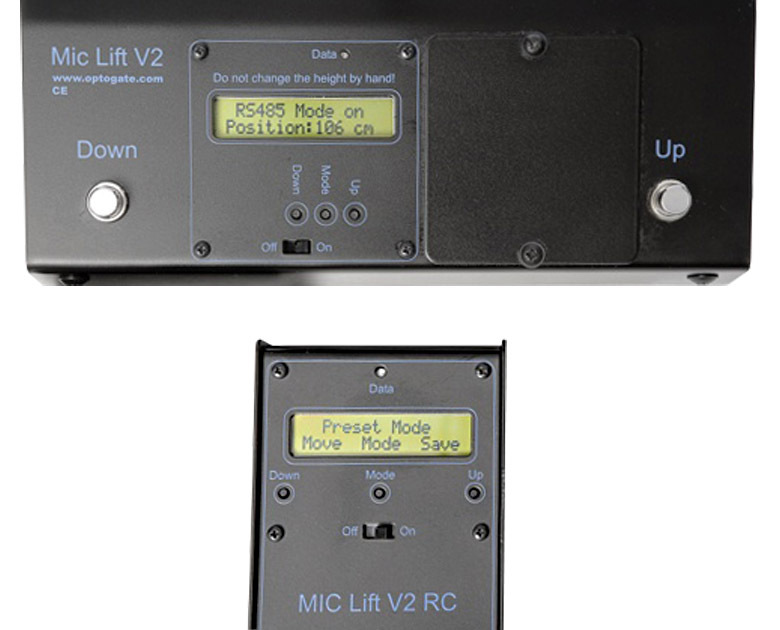

Mic Lift 2 can be controlled from every DMX lighting desk as well as with an extra remote control that is included as standard. The remote control and the stand unit can be connected via an XLR 3-pin mic cable or a multicore. 50 different presets/heights can be saved and recalled with the remote. The actual height of the stand is displayed on the remote control. It gives the engineer the ability to change the height of a microphone remotely, without leaving their place in a control room or front-of-house location, or having a crew member make the adjustment.
Included accessories: Remote control, plug-in AC power supply.
Technical Specifications:
|
Dimensions: | Base unit: 260 x 260(w x d)mm; Stand 1030-1750mm |
|
Connectors: | XLR 3-pin for remote control, 2.5mm DC supply connector |
|
Motor noise: | 44dB(A) at 1 metre distance when motors are working |
|
Remote control: | DMX or RS485, remote control unit supplied with 2 metre cable and 3 pin XLR 3-pin male connector (can be extended with any normal mic cable) |
|
Maximum cable distance: | 150 metres approximately |
|
Powering: | 9-12V DC with eight, internal, AA size batteries, or 12V DC from plug-in AC power supply (2.5mm connector) |
|
Current consumption: | 0.5A approximately when motors working, 19mA standby |
|
Case construction: | Aluminium |
|
Weight: | 7kg approximately |
|
Warranty: | 2 years |
