23-082 WESTWICK MATCH-BOX B MATCHING TRANSFORMER XLR in, out, 2.5k/10k ohms in, 2.5k/10k ohms out

each (ex. VAT) 1+
Price £ 75.00
Canford have chosen to discontinue this item, special orders may be considered for this item if viable in quantity and price. Please contact our sales department for a quote

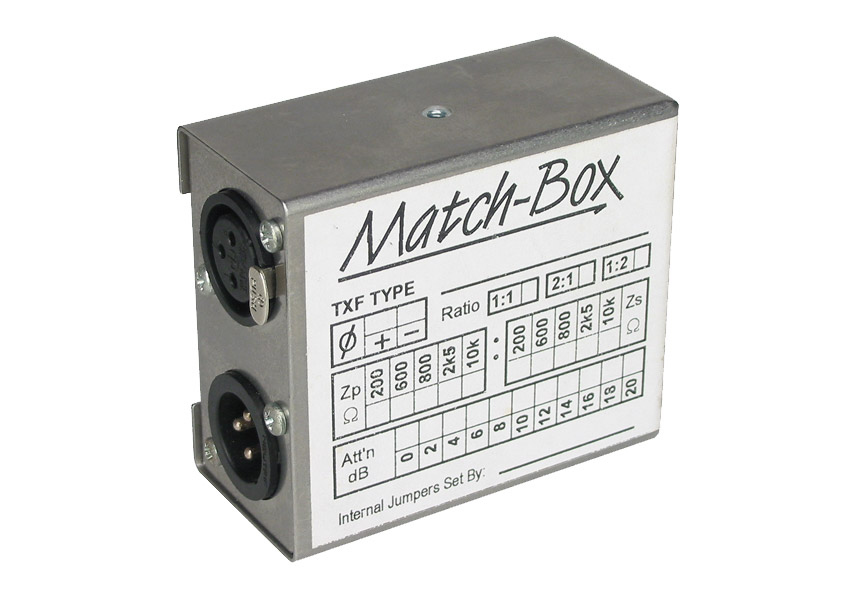

WESTWICK MATCH-BOX B MATCHING TRANSFORMER XLR in, out, 2.5k/10k ohms in, 2.5k/10k ohms out

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

WESTWICK MATCH-BOX

Match-Box is a versatile system designed to simplify the use of transformers both in fixed installations and for rugged problem solving on the road. Each Match-Box is a single transformer mounted in a small stainless steel box with XLR input and output connectors and internal gold-plated jumpers for the setting of virtually every possible combination of parameters allowed by the transformer’s design.

Settable parameters:

Series/parallel primary windings (dependant on transformer fitted) Series/parallel secondary windings (dependant on transformer fitted) Phase inversion (if required) Comprehensive earthing options including R-C earth lift network 10 x 2dB steps output attenuator using 1% resistors (accurate for low source impedance and 10k load); this feature is useful for bypassing or locking-off the input level controls on monitor amplifiers.

VersionTransformerInput impedance (ohms)Output impedance (ohms)
CZ30032k5/10k10k
DZ3001600600

Dimensions: 72(w) x 82(d) x 42(h)mm.

Manufactured by Westwick Installation.
