RDL TX MOUNTING ACCESSORIES
Hardware to mount Radio Design Labs TX modules on surfaces, to panels, and to DIN-rails. A rack-mounting panel is now available.
All TX series modules measure 76 x 30 x 36mm. They are supplied with a self-adhesive foam pad which can be used to attach the module to a clean flat surface. They also have two threaded holes in the base, which are used by several mounting accessories.
TX-RA5 Rackmount Frame

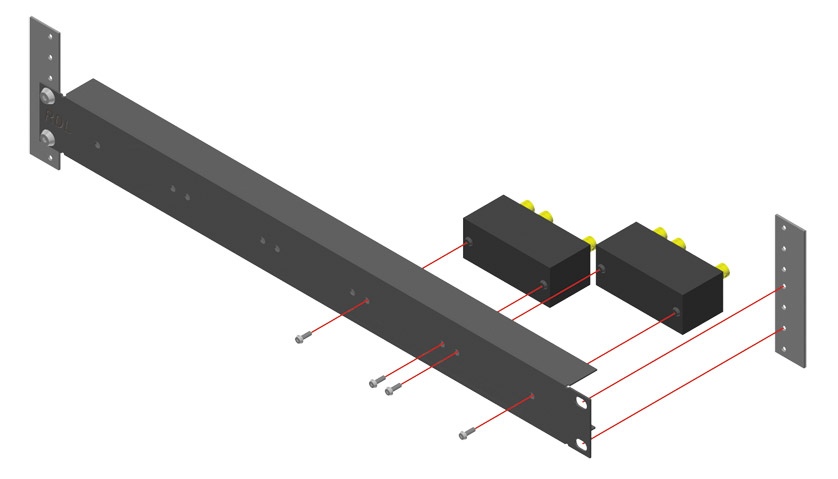

A simple 'L'-shaped, rack-mounting panel, the TX-RA5 is drilled to accept five TX series modules, which attach using the screws provided.
MB-1 Mounting Kit
Kit contains two brackets which fasten over the edge of Stick-Ons, or to the rear of TX products, for universal surface mounting. May also be used with Rack-Up modules.
MB-2 Mounting Kit
A pair of brackets to hold a module in place when placed on a flat surface. Have apertures for fixing screws.
MB-3 Mounting Kit
An accessory to attach RDL TX Series or Stick-On modules to the rear of the FP-RRA and FP-RRAH panels. The TX types screw to the plate through fixing apertures provided; the Stick-Ons, well, stick on (!) using the adhesive pad supplied. The plate then slides into the rear of the rack panels as if it were Flat-Pak module. Plate width: 38mm.
DRA-35T DIN Rail Adapter
A metal plate which attaches to TX series modules with two screws. The plate fixes to a 35mm 'top hat' DIN rail with a detachable metal clip. Fixing holes in the plate allow for mounting directly to a surface as an alternative to the DIN rail.
