RDL FLAT-PAK VIDEO CIRCUIT MODULES
Versatile building blocks in the popular Radio Design Labs 'Flat-Pak' packaging, which will mount directly to surfaces or using a range of mounting options. A selection of distribution amplifiers is offered, including S-video, and A/V types, complimenting the diverse range of audio processing models in the Flat-Pak range.
Mounting: The Flat-Pak range all have the same width, with mounting flanges that offer a variety of fixing options. The flanges have notches for simple fixing to a surface using screws and, using special mounting brackets, can be slotted onto RDL 2U rack-mounting panels. A range of hardware for mounting Flat-Pak modules is described in ‘RDL Flat-Pak Mounting Accessories'.
Powering: All units require a 24V DC power supply; each has both screw terminals and coaxial socket for power input and an additional coaxial socket to feed supply to other modules. Plug-top power supplies are available, providing 24V at 130mA and 330mA, see 'Friwo Plug-Top Power Supplies' for more details. A 'universal' supply is available, 57-401, with 24V 2A output, which requires an IEC cordset. See 'RDL Power Supplies' for further information and a variety of mounting options. Note that all RDL modules with co-axial power input/output sockets use connectors with 2.5mm pins.
Included accessories: All modules are supplied with a datasheet and a power interconnection cable, to cascade power to another module.
FP-VDA4 Video Distribution Amplifier
A 1:4 distribution amplifier for NTSC or PAL video signals. Input and output connectors are BNC and an additional loop output is provided. Adjustable gain (0 to +6dB). Outputs are source terminated, but unused outputs do not require termination.
Supply 24V, 60mA. Dimensions: 107 x 34 x 83 (l x h x w) mm
FP-AVDA4 A/V Distribution Amplifier
A distribution amplifier that provides four outputs for consumer video and stereo audio. Inputs and outputs on RCA (phono) connectors. Video: 1V pp, unity gain, 75 ohms, 10Hz-10MHz (+/- 0.2dB). Audio: -10dBV, unbalanced, unity gain, 10 kohms input impedance, 150 ohms output impedance; headroom better than 18dB, frequency response 20-40,000Hz +/- 0.25dB.
Supply 24V, 60mA. Dimensions: 163 x 34 x 83 (l x h x w) mm.

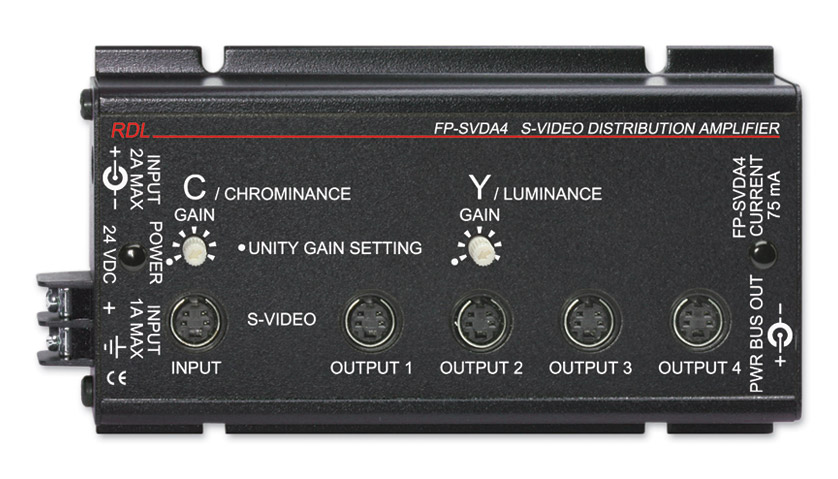

FP-SVDA4 S-Video Distribution Amplifier
A 1:4 distribution amplifier for S-video component signals (found on consumer camcorders and video recorders). Input and output connectors are 4-pin mini-DIN with adjustable gain (0 to +6dB) for chrominance and luminance. Outputs are source terminated, but unused outputs do not require termination.
Supply 24V, 75mA. Dimensions: 107 x 23 x 83 (l x h x w) mm.
