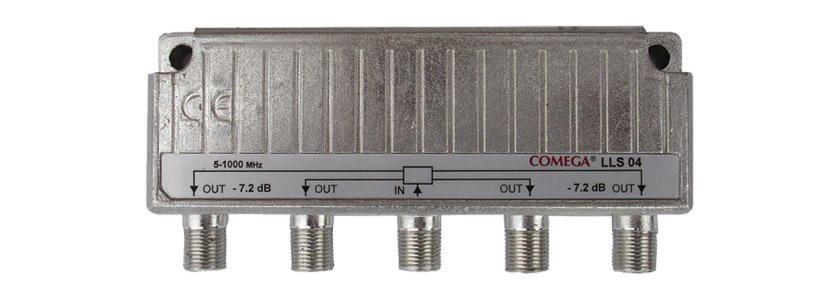

48-893 RF HYBRID SPLITTER LLS-04 F connectors, 75 ohms, 1 channel, 4 way

each (ex. VAT) 1+ 10+
Price £ 22.71 21.29
Special order product. Order cancellations may incur charges
RF HYBRID SPLITTER LLS-04 F connectors, 75 ohms, 1 channel, 4 way

Description

RF DISTRIBUTION COMPONENTS

A range of splitters for use in distribution of RF signals, for example, off-air feeds. All are housed in metal enclosures, with one or two screw fixing lugs.

Input/output connections are all F series female. Bandwidth 5-860MHz, impedance 75 ohms. One input; two, three or four outputs. Input match 26dB at 40MHz – 1.5dB/oct., output return loss 20dB at 40MHz – 1.5dB/oct.

SB-02SB-03SB-04
No. of outputs234
Insertion loss VHF3.3±0.3dB5.3±0.3dB7.0±0.4dB
Insertion loss UHF3.6±0.4dB5.6±0.4dB7.2±0.5dB
Isolation @ 40MHz (–1.5dB/oct)26dB23dB23dB
