Description

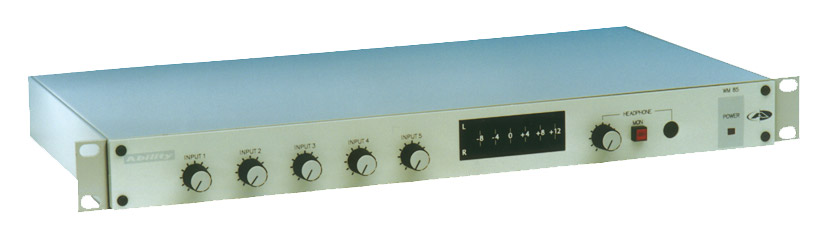

AUDIONICS WM85 WORKSTATION MIXER
This deceptively simple unit offers facilities akin to a dedicated broadcast mixer in a compact affordable package. Inputs are provided for two mic/line channel, (with 18V phantom available for low voltage microphones) and three stereo line sources, all electronically balanced, via rear panel XLR, and each with an associated front panel gain control. The four outputs, again electronically balanced, are fed from internal mixing busbars. The installer selects all signal paths internally using pcb mounted switches to derive mixes as required. A headphone outlet is provided with an associated switch, selecting outputs 1 and 2 or monitor busbars. A twin 24-LED PPM may be selected to follow outputs 1 and 2 or headphone source. The unit is substantially built using high quality components to Audionic’s usual high standard, for applications including dub-bing/workstations, phone interview booths, commentary positions, BGM installations, simple PA systems.
Technical Specification:
| |
| Input impedance | Mic: 1.8k ohms |
| Line: 36k ohms |
| Maximum gain | Mic: 70dB |
| Maximum input: | +22dBu |
| Output impedance: | 100 ohms (ground compensated) |
| Maximum output: | +24dBu |
| Frequency response: | 10Hz–24kHz, ±0.5dB |
| Distortion (THD+Noise): | <0.01% 100Hz–10kHz |
| Noise: | Mic: –120dB EIN peak, 20Hz–20kHz |
| Line: –80dBu peak, 20Hz–20kHz |
| Power: | 220/240V AC (cable not included), |
