Canford

www.canford.co.uk

95-923 AUDIONICS MR102 MIXER 5x stereo in, 2x stereo outputs, all balanced line, XLR, 1U rackmount

each (ex. VAT) 1+
Price £ 431.00
Special order product. Order cancellations may incur charges
AUDIONICS MR102 MIXER 5x stereo in, 2x stereo outputs, all balanced line, XLR, 1U rackmount

Description

Product resources

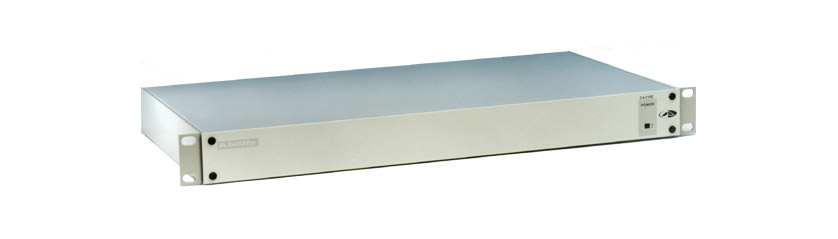

AUDIONICS MR102 MIXER

A single unit, rack mounting, line level mixer, for stereo or dual mono use. Five pairs of inputs are provided via XLR style connectors. Two outputs, with internal pre-set gain controls are mixed, each from five inputs. All inputs and outputs are electronically balanced, but may be used unbalanced with no loss of level. Output isolation transfor-mers are optionally available.

Applications include cue feed mixing, the combining of outputs from, say, several cart machines or the combining of multiple computer assisted playout systems with mixer output.

Technical Specification:

Input impedance:36k ohms
Gain:+6/–12dB (output adjustment)
Output impedance:100 ohms (ground compensated)
Maximum output:+24dBu
Frequency response:10Hz-24kHz ±0.5dB
Distortion (THD+Noise):<0.01% 100Hz–10kHz, +10dBu
Noise:<–80dB PPM 20Hz–20kHz
Power:220-240V, 20W (cable not included)
