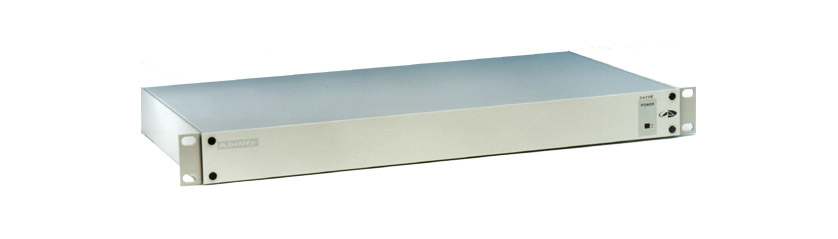

AUDIONICS MM84 MIXING MATRIX
This single unit rackmount package has 8 inputs and 4 outputs, all of which are electronically balanced via XLR style connectors (and can be used in unbalanced mode with no signal loss). Each input can be selected to feed any or all of four mixing busbars using internal PCB mounted switches. Level adjustment is available internally for each output channel. Applications include signal distribution, unbalanced to balanced conversion, zone mixing, cue or cleanfeed generation, deriving up to four mono feeds, or pro to domestic level coversion.
Technical Specification:
|
Input impedance: | 36k ohms |
| Gain: | +6/–12dB (output adjustment) |
| Maximum input: | +22dBu |
| Output impedance: | 100 ohms (ground compensated) |
| Maximum output: | +24dBu |
| Frequency response: | 10Hz–24kHz ±0.5dB |
| Distortion (THD +noise): | <0.01% 100Hz–10kHz, +10dBu |
| Noise: | < –80dB PPM 20Hz–20kHz |
| Power: | 220-240V, 20W (cable not included) |
| Dimensions: | 1U (44mm), 245mm deep |
| Weight: | 5kg |
