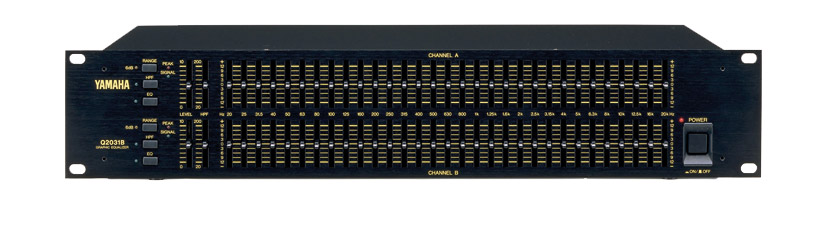

93-291 YAMAHA Q2031B GRAPHIC EQUALISER 2 channel, 31 band, 1/3 octave, 2U rackmount

each (ex. VAT) 1+
Price £ 382.80
YAMAHA Q2031B GRAPHIC EQUALISER 2 channel, 31 band, 1/3 octave, 2U rackmount

Description

Product resources

YAMAHA GRAPHIC EQUALISERS

Q2031B

A 2U rackmounting dual channel 31 band (1/3 octave) graphic equaliser with ±6 or ±12dB gain per band, separate high pass filters and bypass. Input and output is on balanced XLR and unbalanced A-gauge jacks, switchable + 4/–20dB nominal.

Technical Specification:

No. of channels:2
Number of bands/bandwidth:31–1/3 oct
Graphic cut/boost range:±6/±12
HPF:20-200Hz
LPF:none
Notch filters:none
Max input/output level:+24dB
Hum & noise (max i/p gain, EQ flat):–96dB
Distortion (THD 20Hz-20kHz):0.1%@+14dB
Dimension (w x h x d mm):483 x 89 x 298
Weight:5.1 kg
