Description
RANE PROCESSORS

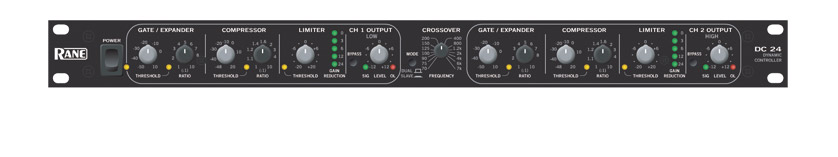

DC24 Dynamic Controller
The DC24 is a 1U rackmounting two channel compressor, limiter and expander gate ideal for on-air and production studios. Inputs and outputs are on XLR and 6.35mm jack connectors, switchable –10/+4dBu. The DC24 features a built-in crossover for split band processing of a single channel. Separate controls are provided for compression ratio and threshold, expander/gate ratio and threshold, limiter threshold, output level, crossover frequency and mode and individual channel bypass switches.
AVA-22D Audio/Video Alignment Delay
The AVA 22 is a 1U rackmount fully balanced two channel digital delay providing a range of 0-8 PAL/SECAM frames (9.5 NTSC) delay on each channel, clearly displayed on LED multi segment displays. Each channel has two non-volatile memories for easy access to settings for different standards. Rear panel terminals allow bypass and memory selection for system integration and a rear panel switch disables front panel controls for tamper proof operation. The audio circuitry employs Dolby Time-Link 1 bit delta-sigma converter circuitry. Inputs and outputs are on XLR connectors.
HC 6 Headphone Amplifier
The HC 6 is a 1U rackmounting 6 channel stereo headphone amplifier. Each channel has front panel level control and headphone socket and rear panel direct input and headphone output jack. Balanced jack master inputs are also provided with master level control and mono/stereo switch. The HC 6 is ideal to feed up to 6 headphones with individual signals or with separate levels of a common signal.
