Description
KLARK TEKNIK EQUALISERS
Klark Teknik has a reputation for providing signal processing equipment of the highest quality. The company’s innovative electronic designs, sophisticated production techniques and stringent quality control ensure products of outstanding sonic quality and reliability. The products have a strong following in sound reinforcement, broadcast, recording and post production studios and permanent installations.

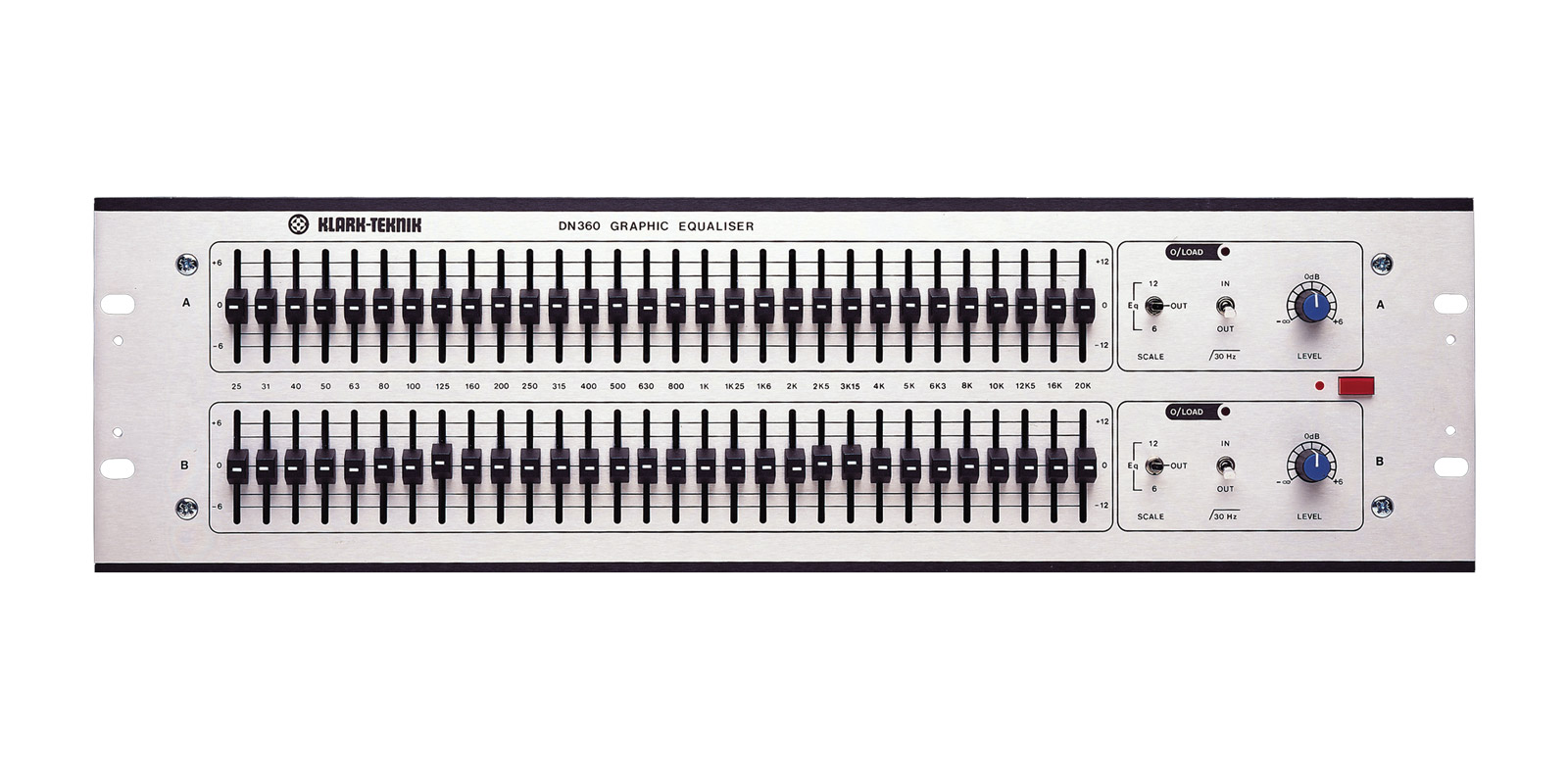

DN360 Dual Channel 30 band Graphic Equaliser
The DN360 is an industry standard with a design virtually unchanged since it was introduced over 15 years ago, and over 30,000 units sold. It is a dual channel third octave graphic equaliser, occupying 3U of rack space. Oil damped precision slide controls (30mm) are arranged in two identical rows of thirty ISO frequencies between 25hz and 20kHz. Each channel also has +/ 6dB adjustment range selection, 50Hz high pass filter, and overall gain adjustment.
DN370 Dual Channel 30 band Graphic Equaliser With Filters
An enhanced dual channel third octave graphic equaliser occupying 3U of rack space, which provides additional high/low pass and notch filters for more accurate control in difficult environments. This new product has been introduced recently and further details will be available at Canford Online.
DN9340E Helix Dual Channel Master Digital Equaliser
A dual channel digital equaliser occupying 2U of rack space. Each channel has a 31 band graphic equaliser, 12 band parametric equaliser, four configurable filters and T DEQ dynamic filters that allows the user to set in advance the gain of a parametric EQ section that will occur at specific signal levels. Full time metering is provided for inputs, outputs and T DEQ functions, and overall the control surface is simple and intuitive to use. Below the main display is a dual touch strip which allows one step access to various functions, obviating the need to use separate rotary encoders. The DN9340E will also link to DN6000 to provide auto EQ functions if required. Audio inputs and outputs are analogue and AES/EBU digital, with enough signal processing inside for all the functions to be used simultaneously.
DN9344E Helix Four Channel Slave Digital Equaliser
Designed to be used with the DN9340E this unit packs four complete channels into a 1U space, which are controlled from a master unit. Each channel has front panel metering and status lights and, for installed systems, a rear connector allows up to eight presets to be recalled by external contact closure. Audio inputs and outputs are analogue and AES/EBU digital, with enough signal processing inside for all the functions to be used simultaneously.
