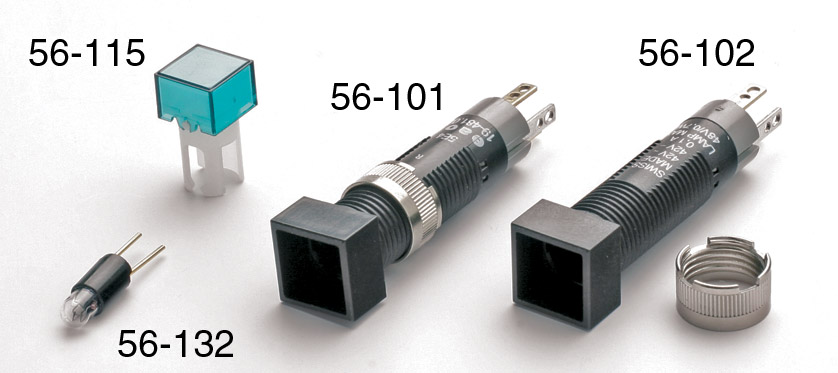

56-101 EAO 19-481-035 19LL SWITCH 9mm square head, 1 pole, locking

each (ex. VAT) 1+ 5+ 25+ 50+
Price £ 3.56 3.46 3.35 3.24
Canford have chosen to discontinue this item, special orders may be considered for this item if viable in quantity and price. Please contact our sales department for a quote
EAO 19-481-035 19LL SWITCH 9mm square head, 1 pole, locking

Description

EAO SWITCHES Series 19LL

EAO are a long established supplier of push-button switches to the professional audio and video markets.

Miniature illuminated indicator switches, with 9mm square black heads and coloured lenses. Available with single-pole locking or non-locking actions, specifically designed for switching low level electronic signals, eg. audio. When the locking type is operated, the lens remains in the depressed position, giving visible indication of status.

Contacts are gold plated silver, rated 100mA 42VAC/VDC. Contact resistance 50m ohm, rated 5 million operations. Solder tag terminals, max. wire sixe 2 x 0.8mm diameter solid, 1 x 0.75mm sq. stranded.

Lamps are T1 bi-pin type, 0.7W, length 9mm, diameter 3.8mm.

Dimensions: Extension in front of panel 9mm, max. panel thickness 8mm, depth from front of panel to rear of terminals 33mm.
