58-232 ALPS SPUN19036A SWITCH 3.3mm square shaft, latching,4 pole

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 0.95 0.90 0.86 0.82
ALPS SPUN19036A SWITCH 3.3mm square shaft, latching,4 pole

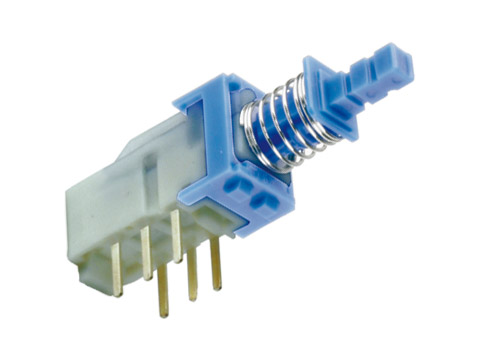

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

Product resources

ALPS SWITCHES

These switches are possibly the most widely used type in UK manufactured mixers, and are stocked for use as replacement spares. There are 2 and 4 pole latching (“push on-push off”) types. All are break-before-make (“non-shorting”), and are rated 30 volts DC, 0.1 amp. Shaft size 3.3 × 3.3mm. Suitable buttons also stocked – see “Switch buttons”.

Canford codeTypeAlps codeOverall length
58-2312-pole latchingSPUN19035A42.0mm
58-2324-pole latchingSPUN19036A51.5mm
