58-260 CARBON FADER Type B, linear taper, 60mm

Canford have chosen to discontinue this item, special orders may be considered for this item if viable in quantity and price. Please contact our sales department for a quote
CARBON FADER Type B, linear taper, 60mm

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

LOW COST CARBON TRACK FADERS

Low cost 60mm carbon track faders suitable for use as spares in a wide range of equipment as well as for projects. Front face is tapped for direct panel mounting and the side panel has solder contact terminals and anchor tags. Available with a choice of operating arm sizes.

Technical Specification:

Resistance:100k ohms ±20%, linear taper
Rated power:0.5 watts
Travel:60mm
Body dimensions (l x h x w):88 x 11 x12.5mm
Panel mounting holes:2 holes M3 clearance, centres 80.0mm

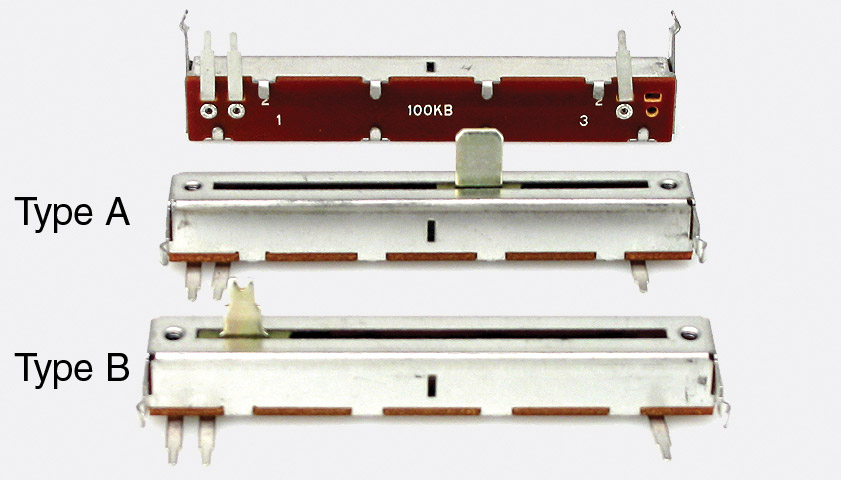

Operating arm:Type A - 8(l) x1.2 (w) x10 (h. above fader body) mm
Type B - 6(l. at bottom), 4(l. at top) x1.2 (w) x10 (h. above fader body) mm
Panel slot length:70mm
