58-267 ALPS FADER N-type, audio taper, 100mm, mono

This item is no longer available to purchase from Canford

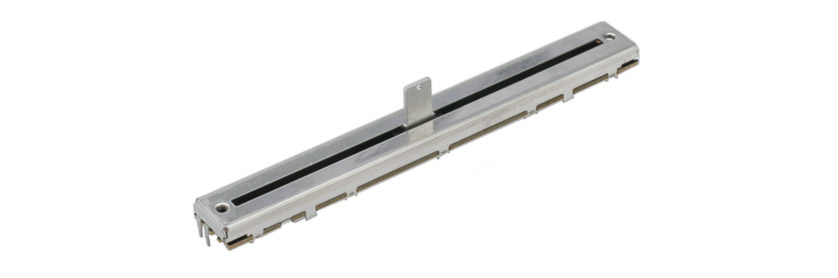

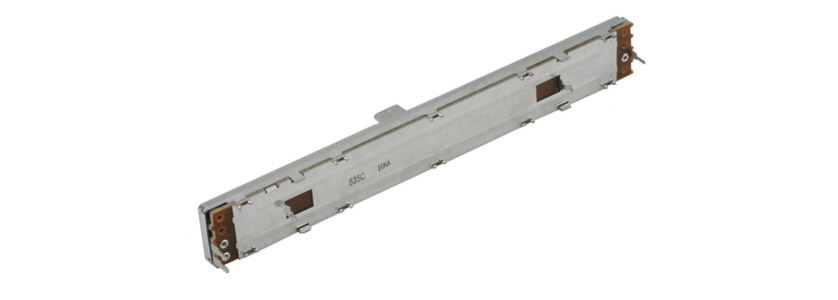

ALPS FADER N-type, audio taper, 100mm, mono
ALPS FADER N-type, audio taper, 100mm, monoALPS FADER N-type, audio taper, 100mm, mono

Description

ALPS LOW PROFILE CARBON TRACK FADERS

Low profile carbon track faders suitable for use as spares in a wide range of equipment as well as for projects. Features of the ‘N’ type include low profile, low cost and smooth feel. Front face is tapped for direct panel mounting and the rear face has PCB lugs, which also accept solder terminations. Optional 5mm spacer and screw kits are available for use with ‘R’ and ‘RH’ fader knobs to achieve a lower knob position. Available in 100mm travel, mono.

Technical Specification:

Resistance:10k ohms ±20%
Law:Audio taper
Rated power:0.1 watts
Max operating voltage:10V DC 150V AC
Maximum attenuation:70dB
Travel:100mm
Body dimensions
(l x h x w):128 x 8 x 16mm (term 3.5mm)
Panel mounting holes:2 holes M3 clearance centres 120mm
Note: mounting screw max length = panel thickness + 3mm
Operating arm:8 (l) x 1.2 (w) x 12 (h above fader body) mm
Audio connections:PCB pins
Slot length:110mm (100mm type)
