CHIAYO SMART PORTABLE SOUND SYSTEMS - VHF
All-in-one multi-functional, multi-purpose, portable sound systems designed for use both indoors and outdoors, the Smart series may be powered from internal battery or AC power. Models offer wired microphone, wireless microphone and auxiliary source inputs. One also offers an USB MP3 player. When used in wet surroundings, such as beside swimming pools, the battery powering and wire-free operation offer clear advantages in terms of safety.
Smart 300VHF
A 10 watt amplifier and speaker are contained in a moulded enclosure with a standard 3/8 inch thread for mounting on microphone stands. A wired microphone input uses a 6.35mm jack socket, an auxiliary input uses a 3.5mm jack. Each of these inputs has a volume control together, and a separate level control for a fitted VHF radio microphone receiver. Radiomic frequency: 174.600 MHz only, deregulated, no license required in UK. A tone control affects the overall mix.
Guide coverage: Up to 50 metres sq. Power: 10W RMS. Frequency response: 50Hz - 20kHz +/- 3dB. Power source: External 230V AC power supply or internal batteries offering up to six hours music, 10 hours speech. Dimensions: 140 x 247.5 x 152.5 (w x h x d)mm. Weight (basic unit): 2.7kg.
Included accessories: AC power supply and charger. Charger has IEC inlet, power cable included.

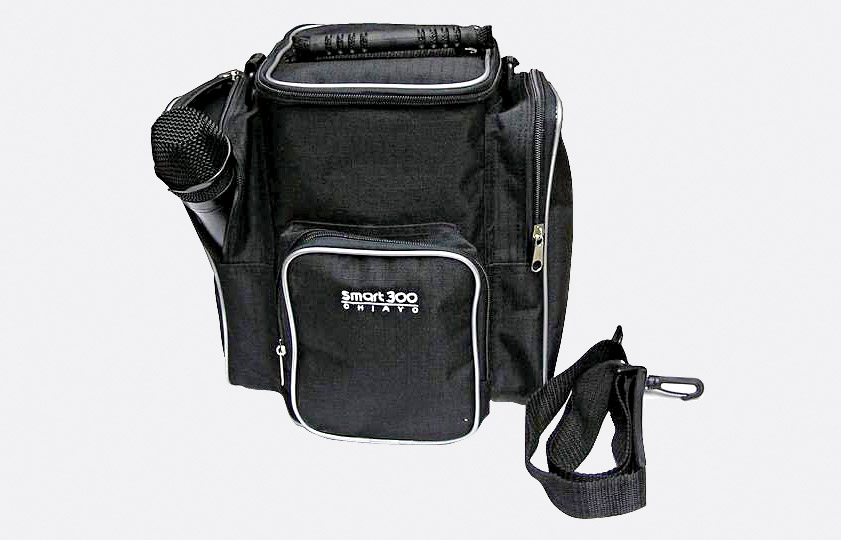

Optional accessories: Q1002 single channel hand-held radiomic. M1002/MC-16X single channel belt pack radiomic transmitter complete with MC-16X tie clip microphone. The tie clip microphone is supplied with the belt pack. MC-72X head worn microphone may be ordered separately and used with the belt pack. Both transmitters require a single 9v PP3 battery. SB-11 Carrying case with pockets for accessories. The thread in the enclosure will fit to standard microphone stands, which are to be found in the 'Microphone accessories' section.
Smart 300VHF/USB
As the Smart 300VHF, with USB MP3 player fitted. The MP3 player uses the auxiliary level control. Files recorded on a standard USB flash memory (on a PC) can be replayed. USB2 memory keys of up to 1GB capacity may be used. The player has buttons for play/pause, track select up, down, and mode, which provides four preset tone settings.
Accessories: As the Smart 300VHF.
